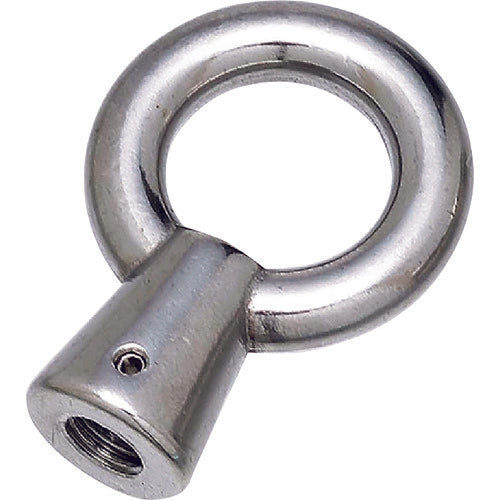

Mizumoto Stainless Steel Eye Nut, Metric Screw, Screw Diameter M-6, INC-6M, 1 Piece
Mizumoto Stainless Steel Eye Nut, Metric Screw, Screw Diameter M-6, INC-6M, 1 Piece
Regular price
¥1,068
Regular price
Sale price
¥1,068
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: INC-6M Features: ●The head of the nut is ring-shaped, so it can be used with ropes, chains, wires, etc. ●Unlike regular eye nuts, the female thread does not penetrate, so the screw hole is not visible when installed, making it more decorative. Applications: ●For general loading and unloading, such as lifting machinery and equipment. Specifications: ●Working load (kN): 0.49 ●A (mm): 13 ●D (mm): 5 ●B (mm): 15 ●L (mm): 16 ●H (mm): 20 ●T (mm): 6 ●Twist diameter: M-6 Material/Finish: ●Material: Stainless steel (SUS304) ●Finish: Barrel polishing finish Caution: ●Please use metal adhesives depending on the situation.
