Mizumoto Stainless Steel JIS Type Shackle SB Type Nominal 12mm A-2464 1 pc

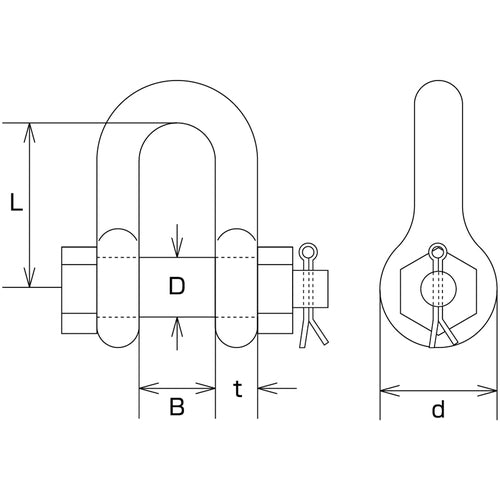

Catalogue number: A-2464 Features: ● A shackle in which the pin is thicker than the frame. ● A split pin fastener means there is no risk of the pin coming loose due to vibration. ● JIS type. Applications: ● As a connecting metal fitting for chains, wires, ropes, etc., and as a joint for terminal fittings. ● In places where there is a possibility of the pin coming loose with a normal shackle, especially in areas with a lot of vibration. Specifications: ● Working load (kN): 8.82 ● Thread diameter: M14 ● B (mm): 20 ● D (mm): 15 ● L (mm): 48 ● d (mm): 32 ● t (mm): 12 ● Mizumoto Stainless Steel JIS Type Shackle SB Type Nominal 12mm Material/Finish: ● Stainless steel (SUS304) ● Finish: Electrolytic polishing finish
