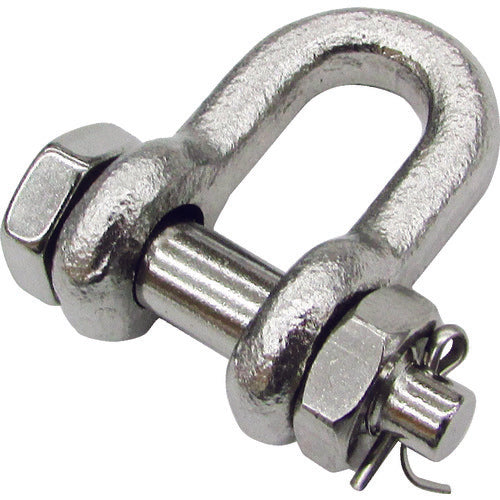

Mizumoto Stainless Steel JIS Type Shackle SB Type Nominal 16mm A-2466 1 pc

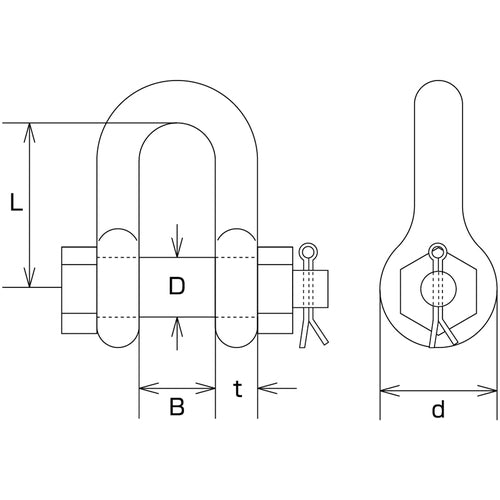

Catalogue number: A-2466 Features: ● A shackle in which the pin is thicker than the frame. ● A split pin fastener means there is no risk of the pin coming loose due to vibration. ● JIS type. Applications: ● As a connecting metal fitting for chains, wires, ropes, etc., and as a joint for terminal fittings. ● In places where there is a possibility of the pin coming loose with a normal shackle, especially in areas with a lot of vibration. Specifications: ● Working load (kN): 14.70 ● Thread diameter: M18 ● B (mm): 26 ● D (mm): 19 ● L (mm): 64 ● d (mm): 40 ● t (mm): 16 ● Mizumoto Stainless Steel JIS Type Shackle SB Type Nominal 16mm Material/Finish: ● Stainless steel (SUS304) ● Finish: Electrolytic polishing finish
