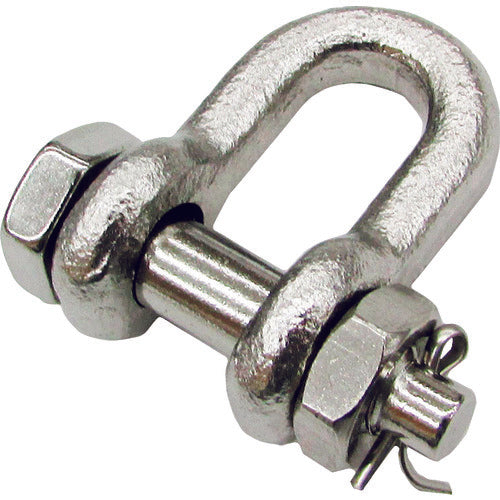

Mizumoto Stainless Steel JIS Type Shackle SB Type SB-10 Nominal 10mm SB-10 1 pc

Catalog number: SB-10 Features: ● A shackle with a pin diameter thicker than the frame diameter. ● Comes with a split pin to prevent the nut from coming off. Applications: ● For connecting chains, wires, ropes, etc., and for joining terminal fittings. ● Particularly in places where there is a possibility of the pin coming loose with a normal shackle due to a lot of vibration. Specifications: ● Thread diameter: M12 ● B (mm): 17 ● D (mm): 12 ● L (mm): 40 ● d (mm): 25 ● t (mm): 10 ● Working load (kN): 5.88 Material/Finish: ● Material: Stainless steel (SUS304)
