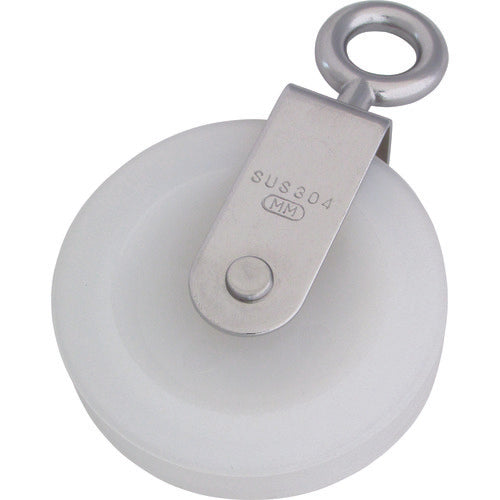

Mizumoto Nylon Pulley Eye for Rope Diameters up to 9mm PB-65E 1 pc
Mizumoto Nylon Pulley Eye for Rope Diameters up to 9mm PB-65E 1 pc
Regular price
¥1,627
Regular price
Sale price
¥1,627
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

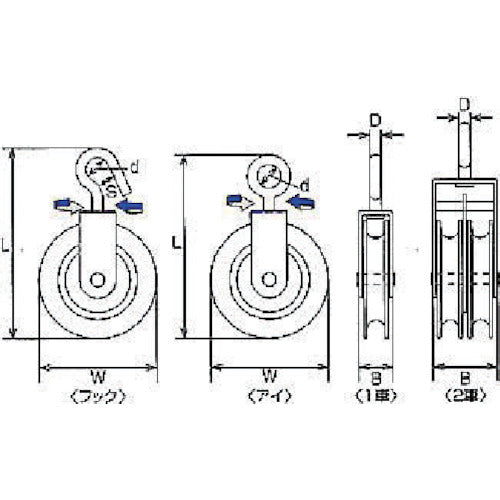

Catalog number: PB-65E Features: ● Small and lightweight pulley. Uses: ● As an adjustable pulley for ropes. Specifications: ● B (mm): 19 ● D (mm): 6 ● L (mm): 108 ● d (mm): 14 ● Wheel diameter W (mm): 66 ● Wheel groove width (mm): 9 ● Number of wheels: 1 ● Type: Eye ● Rope diameter (mm): 9 Material/Finish: ● Material: Stainless steel (SUS304), sheave = nylon ● Finish: Barrel polishing finish
