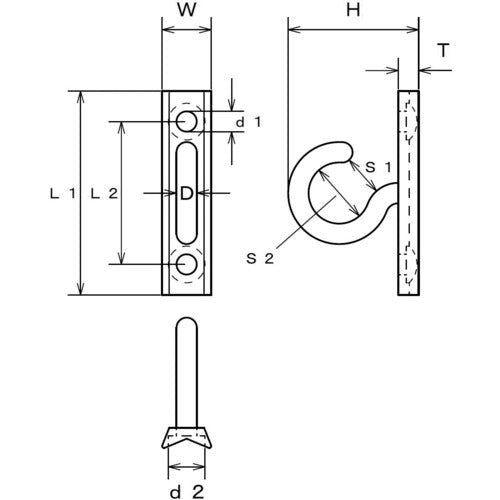

Catalog number: B-2589 Features: ●The back is V-shaped so it fits curved surfaces. ●The back has a counterbore. ●It is designed to be used with blind nuts. Applications: ●Install on walls, floors, pillars, etc. to hang items. Specifications: ●Hanging load (N/kgf): 98/10 ●D(mm): 4 ●D1(mm): 4.2 ●D2(mm): 8 ●H(mm): 26 ●L1(mm): 40 ●L2(mm): 30 ●S1(mm): 7 ●S2(mm): 11.5 ●T(mm): 4.2 ●W(mm): 10 ●d(mm): 4 ●d1(mm): 4.2 ●d2(mm): 8 ●h(mm): 26 ●t(mm): 4.2 Material/Finish: ●Stainless steel (SUS304)
