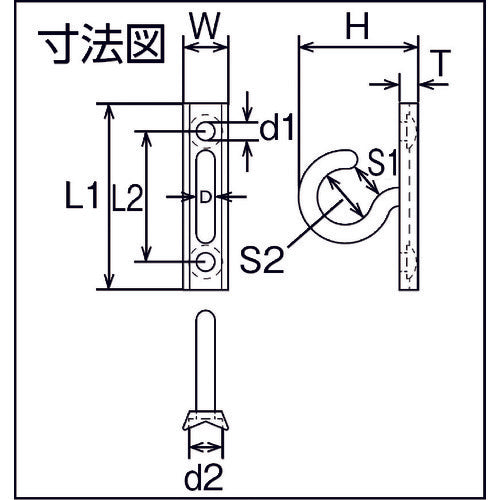

Catalog number: B-2592 Features: ●The back is V-shaped so it fits curved surfaces. ●The back has a counterbore. ●It is designed to be used with blind nuts. Applications: ●Install on walls, floors, pillars, etc. to hang items. Specifications: ●Hanging load (N/kgf): 294/30 ●D(mm): 8 ●D1(mm): 6.2 ●D2(mm): 11 ●H(mm): 50 ●L1(mm): 70 ●L2(mm): 55 ●S1(mm): 15 ●S2(mm): 23.5 ●T(mm): 5 ●W(mm): 16 ●d(mm): 8 ●d1(mm): 6.2 ●d2(mm): 11 ●h(mm): 50 ●t(mm): 5 Material/Finish: ●Stainless steel (SUS304)
