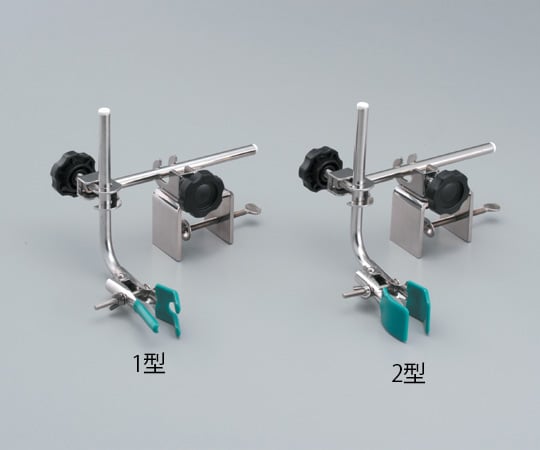

The clamp section can move back and forth, up and down, and swivel.
All stainless steel construction with excellent chemical and corrosion resistance. Material: Stainless steel (SUS304)
Jig: Water tank mounting range: 1 to 46 mm, tightening range: up to φ13 mm, left and right swing range: 30 degrees left and right (total 60 degrees)
Clamp section: Front-back movement range: 120 mm, up-down movement range: 100 mm
Total length: 270mm

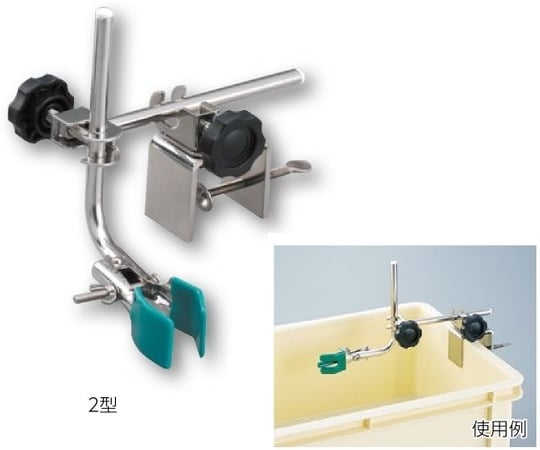

Model number: Type 2
Tip clamping range (mm): φ15 to 40
With heat-resistant resin cap (heat-resistant up to 105℃)
