アズワン

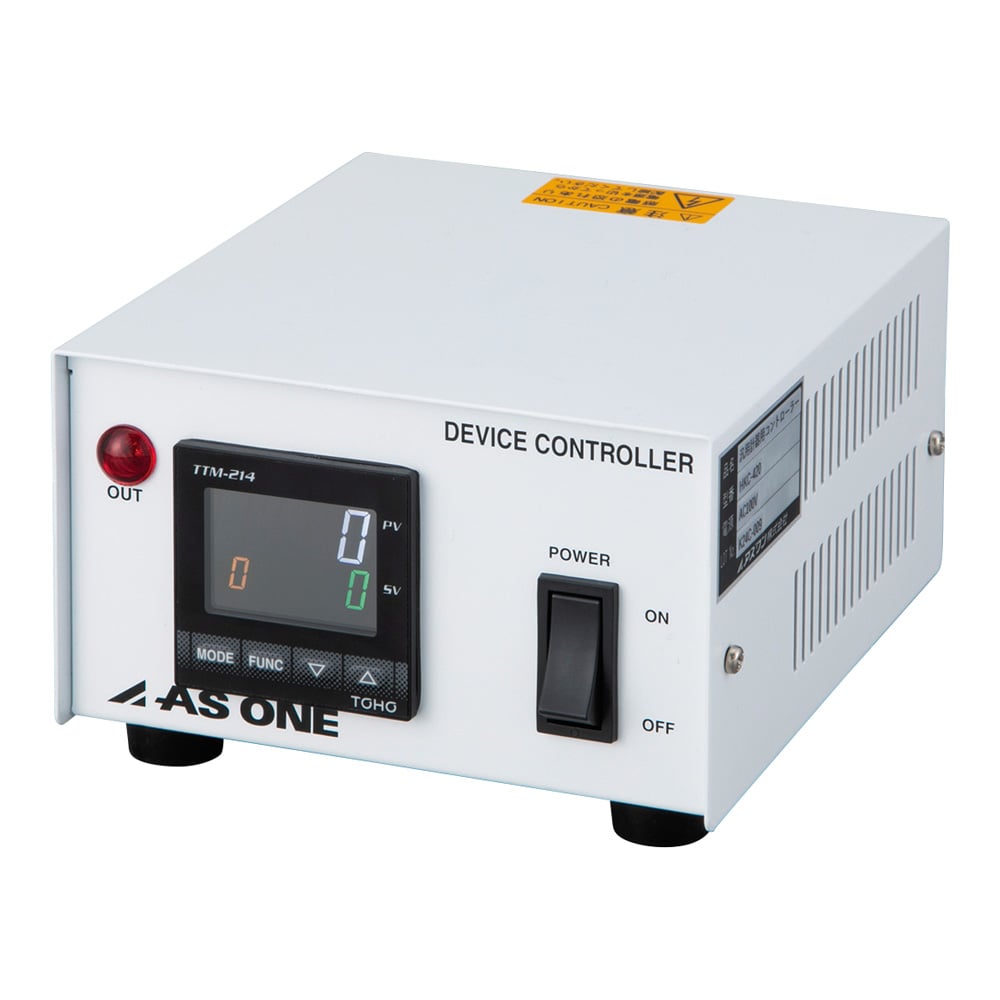

General purpose measuring instrument controller (analog input, 100V output) 126 x 160 x 84mm HKC-420 1 unit
General purpose measuring instrument controller (analog input, 100V output) 126 x 160 x 84mm HKC-420 1 unit
Regular price
¥63,800
Regular price
Sale price
¥63,800
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

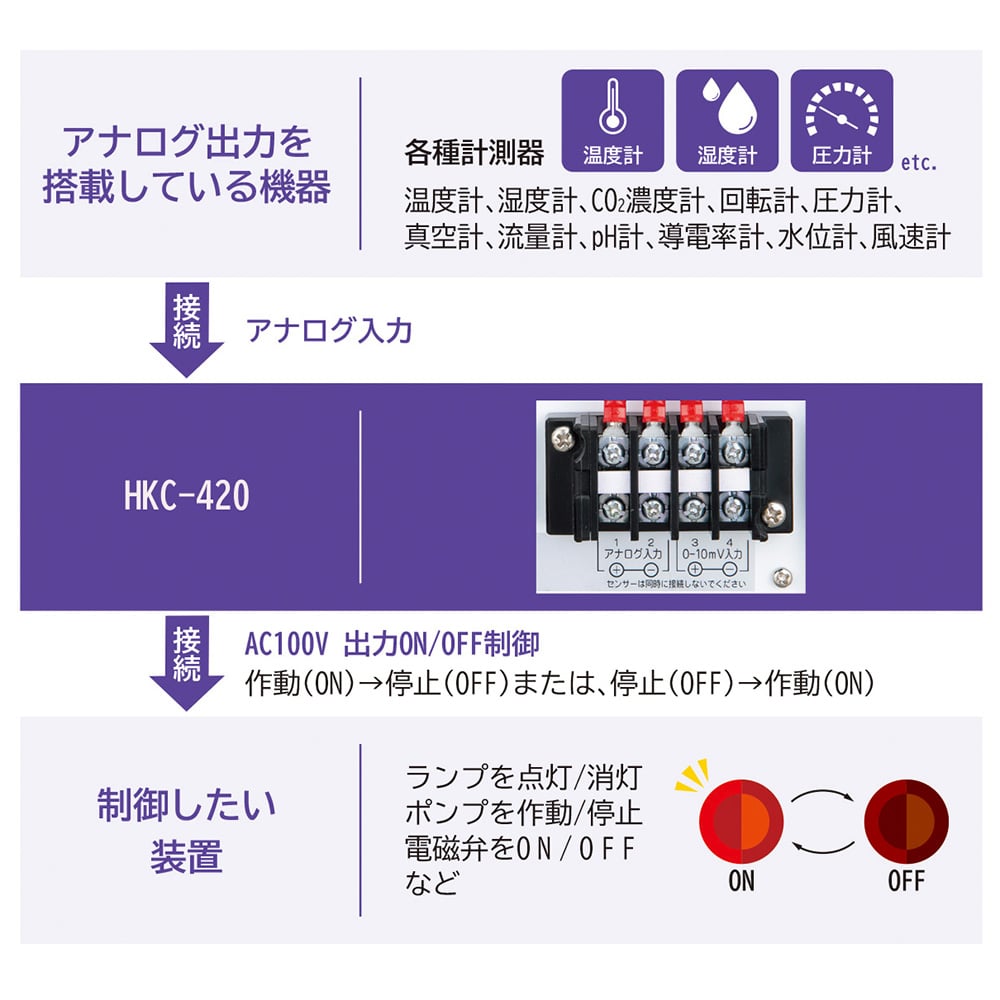

Analog signals (4 to 20 mA, 1 to 5 V) from various measuring instruments can be input (connected).
The controller can set scaling (upper and lower limits) for each analog input.
ON/OFF control is possible by setting a target value (SV value).
It can control the ON/OFF of devices up to AC100V 15A (e.g. warning lights, fans, solenoid valves).
An error occurs if the analog input cable is broken. Dimensions (mm): 126 x 160 x 84
Control method: ON/OFF control
Output control method: SSR output
Connection capacity: AC100V 15A (MAX)

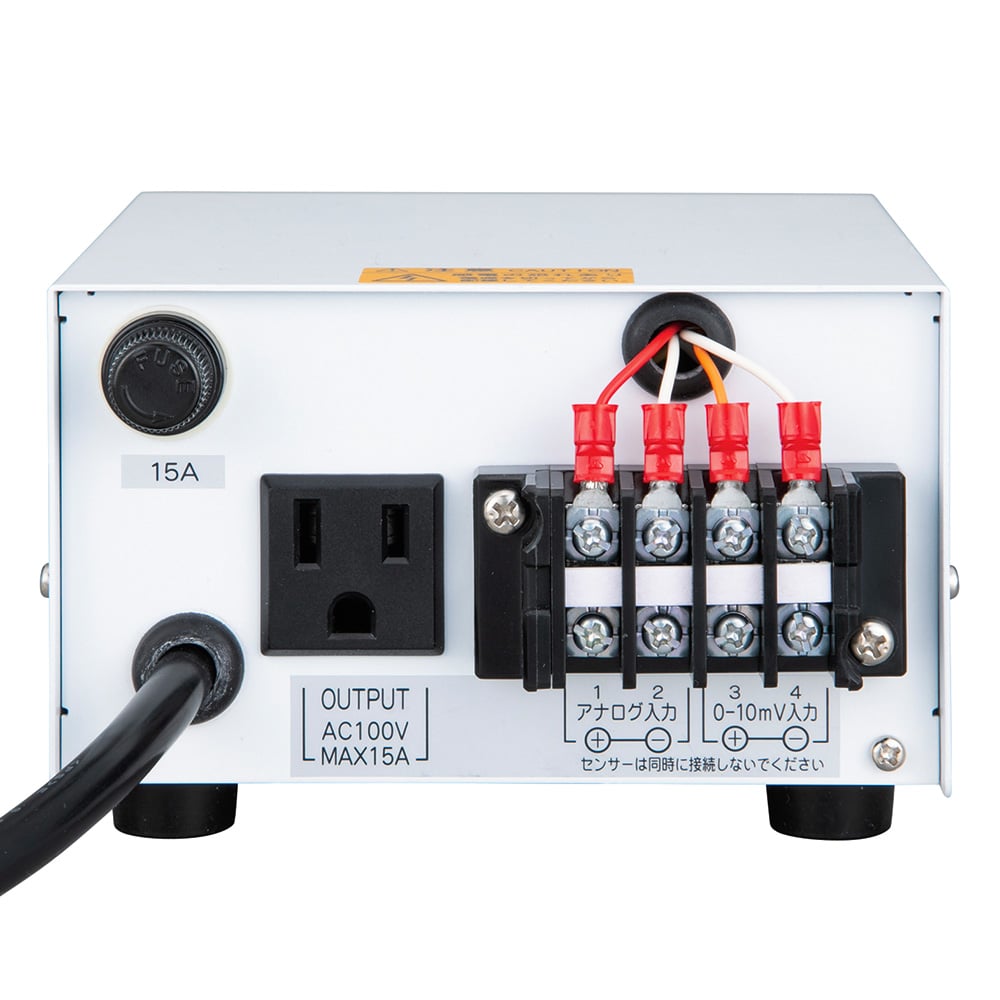

Connection terminals: Control output/3P outlet, Analog input/M3.5 terminal block
Analog input: DC4-20mA, DC0-1V, DC0-5V, DC1-5V, DC0-10V, DCO-10mV
Power supply: AC100V 50/60Hz Power cord: 3P plug (cord length: 1.8m)
