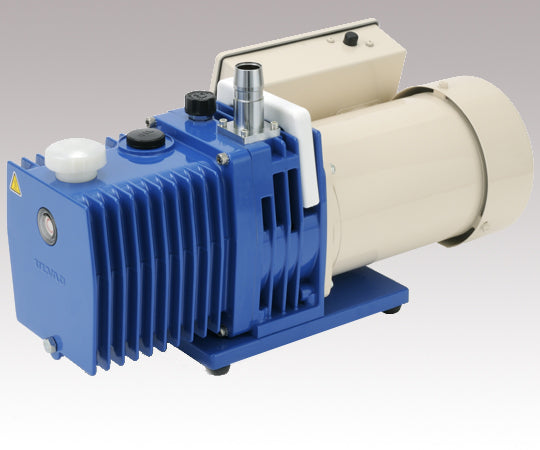

Oil rotary vacuum pump (small direct-coupled type) 234 x 500.5 x 264 mm, two-stage type G-101D, 1 unit
Oil rotary vacuum pump (small direct-coupled type) 234 x 500.5 x 264 mm, two-stage type G-101D, 1 unit
AS ONE Best & Long-selling
AS ONE Recommended Specials
Education and Materials
Featured
General-purpose physicochemical equipment
Laboratory Supplies
Liquid transfer, pressure increase and reduction pump
Oil rotary vacuum pump
Oil rotary vacuum pump (small direct-coupled, handy type) G series
Pumps (vacuum, pressure, liquid delivery)
Research and Experimental Equipment
Research Equipment
science
Vacuum pump
Vacuum pump (oil rotary type)
Regular price
¥176,000
Regular price
Sale price
¥176,000
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Low tone and low vibration.
It is beltless and directly connected to the motor, so it is easy to install into the device. Model number: G-101D
Type: Two-stage
Exhaust speed (effective) (L/min): 100/120 (50/60Hz)
Ultimate pressure (Pa): 6.7×10^-1 (5×10^-4 Torr), gas ballast valve closed 6.7 (5×10^－2 Torr) gas ballast valve open
Power supply (V): Single phase 100
Intake diameter (OD) x (ID) mm: 27 x 20 (^□40 flange)
Oil used: SMR-100 (included)
Oil volume: 800mL
Size: 234×500.5×264mm
Weight: 23kg
Small direct type
*If an intake pipe with a smaller inner diameter than the pump's intake pipe is used, the effective exhaust speed may decrease slightly. Gas ballast is included.
Compatible oil mist traps: OMT-100A, OMI-100
