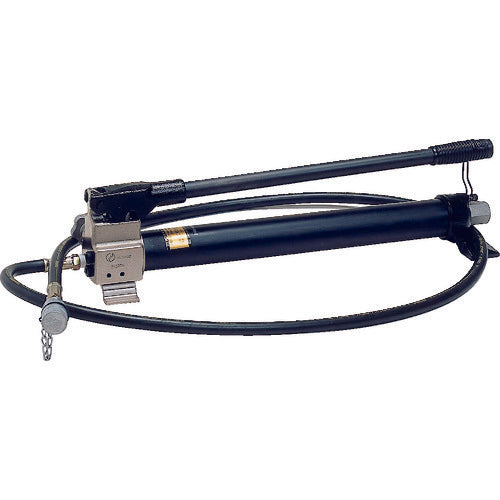

Izumi manual hydraulic pump with 2m hose HP700A 1 unit
Izumi manual hydraulic pump with 2m hose HP700A 1 unit
Regular price
¥102,168
Regular price
Sale price
¥102,168
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: HP700A Features: * When the specified pressure is reached, output stops, preventing poor crimping. * Pressure regulation is a double safety measure. Specifications: ● Set pressure (MPa) high pressure: 68.5 ● Set pressure (MPa) low pressure: 2 ● Discharge volume (cm3/stroke) high pressure: 1.5 ● Discharge volume (cm3/stroke) low pressure: 10.5 ● Tank capacity (L): 0.7 ● Width (mm): 580 ● Depth (mm): 140 ● Height (mm): 160 ● Width x Depth x Height: 580 x 140 x 160 mm ● Tank oil volume: 0.71 L ● Comes with 2 m hose (mounting coupler diameter: 3/8) ● Compatible tools: Crimp terminal tool-No. 12A, No. 12H, compression terminal tool-No. 16B, EP-520C, EP-1000A ● JIS9711 compliant ● Can be replaced with a maximum hose length of 3 m by separate order Material/Finish: ● Steel Set contents/Accessories: ● Hose: 2 m
