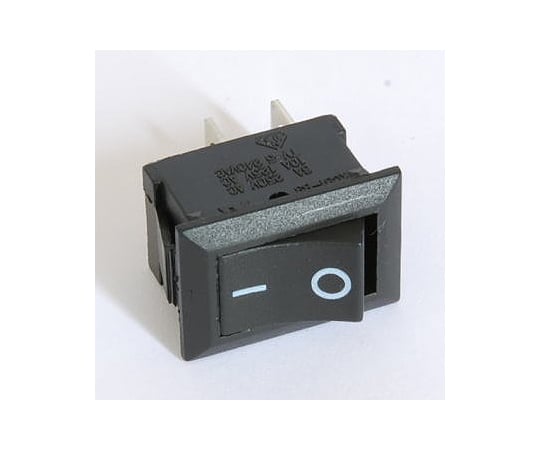

Wave switch ON-OFF tab terminal KCD1-AP-101012BBA 1 piece

This is a single circuit ON-OFF wave switch. This is a panel-mounted wave switch, also known as a tumbler switch. Drill a hole in the panel and insert it from the back. It has a tab terminal equivalent to #187 Faston. Package: WAVE-9 Control unit shape: Rectangular Operation panel display: |Show Number of poles: - Switch characteristics: ON-OFF Terminal shape: Tab terminal Rating: AC250V-6A Body color: Black Control unit color: Black Implementation: Panel snap-in Mounting hole diameter: 19 x 12 mm Maximum dimensions: 21 x 15 mm
