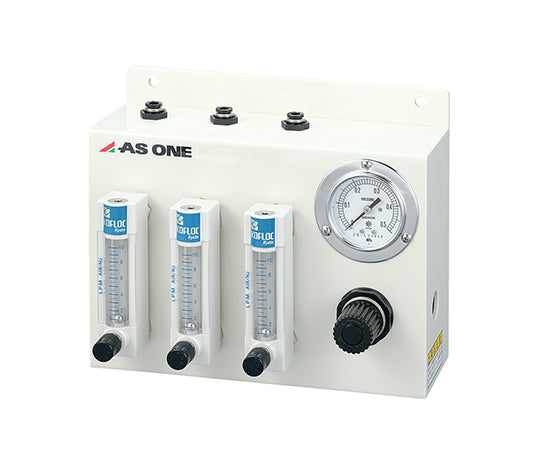

Regulator with flow meter FMC-1 1 unit

This is a flow controller that adjusts the pressure and flow rate of the introduced gas during gas replacement to ensure the introduction of gas. Up to three units can be controlled simultaneously. <Pressure adjustment valve> Target gas: One of Ar, N2, O2, CO2, He, Air, or C2H2 Primary pressure: 10kg/cm2 (approx. 0.98MPa) MAX Flow rate: 30L/minMAX Secondary pressure: 0 to 5 kg/cm2 (0 to approx. 0.49 MPa) (*The values ​​in parentheses are converted values ​​in Pa.) Connection tube outer diameter: φ6mm <Flow meter> Flow rate: 10L/min MAX Pressure resistance: Approx. 0.69MPa (7kg/cm2) Heat resistance: 60℃ MAX Connection tube outer diameter: φ6mm Housing: PMMA (acrylic) Model number: FMC-1 Size (mm): 230 x 133 x 190
