■Overseas specification THERMAX (AC220V plug type: F) TMK-1A-F 1 piece
■Overseas specification THERMAX (AC220V plug type: F) TMK-1A-F 1 piece
Regular price
¥67,100
Regular price
Sale price
¥67,100
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The compact body is packed with convenient functions.
By using a sophisticated temperature control algorithm and a platinum temperature sensor with low error, high-precision temperature control is possible.
An easy-to-use jog dial input method is used for temperature and timer settings, allowing for quick and accurate settings.
Microcomputer-based PID control enables highly precise temperature control.
Equipped with a buzzer to notify you when the set temperature and time are reached.
Uses a double lock mechanism consisting of two independent circuits.
Four types of timer states (ON, OFF, ON/OFF, SV) are standard.
Beautiful and easy-to-read display screen. Uses a negative backlight LCD for good visibility.
It is also possible to set the key lock and display the total operating time, timer, and remaining time of the program. Body dimensions (mm): 150 x 160 x 308
Effective internal dimensions (mm): 180 x 252 x 153
Type: Water bath
Performance
Temperature adjustment range: Room temperature +5 to 80°C
Temperature control accuracy: ±1.0℃ (in-house test value)
Temperature setting range: -20.0 to +80.0°C (The unit does not have a cooling function. Please use an external (optional) cooling device.)
Function: Abnormal heating prevention device (thermostat)
Configuration: Sensor: Pt100Ω
Heater capacity: 1kW
Specifications: Stirring mechanism: Jet stirring type
Pump capacity: Maximum discharge volume/10L/min, Maximum head/1.4m
Timer setting range: 1 minute to 99 hours 59 minutes (in 1 minute increments)

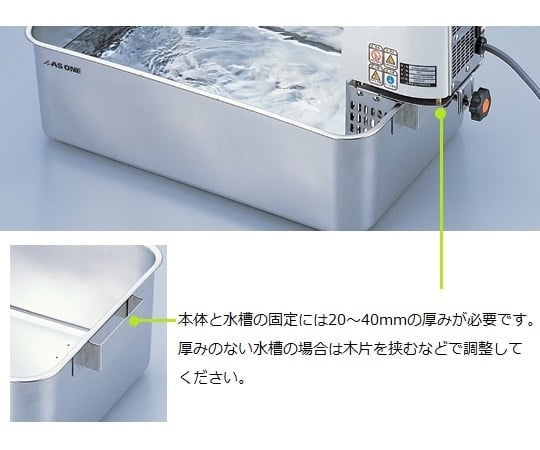

Clamp mounting width: 40mm
Power supply: AC220V 50/60Hz
Accessories: Water tank (PP) RoHS2 (EU) 2015/863 compliant
