Hot water circulation device HTC-1000 1 unit

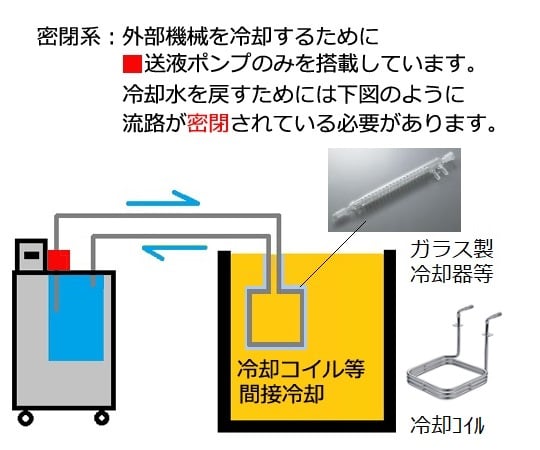

An on/off timer function is standard and can be set to any desired time. It is convenient to use as it uses a 360° free circulation nozzle. Closed circulation system Maximum temperature rise time: Approximately 90 minutes (when used as a thermostatic water bath) Time setting range: 0 minutes to 99 hours (in 1 minute increments) Temperature setting unit: 1℃ Pump capacity: Maximum flow rate: 20L/min, Maximum head: 9.5/12.9m (50/60Hz) External dimensions: 505 x 360 x 370 mm Inner dimensions: 300 x 300 x 300 (effective dimensions: 225) mm Circulation connection port (inlet/outlet) outer diameter: φ11mm Tank capacity: 27L Safety devices: Self-diagnosis function (detection of abnormal upper and lower temperature limits, heater disconnection detection, sensor abnormality detection), leakage current overcurrent breaker, abnormal heating prevention device, float type dry-burn prevention Power supply: AC100V 50/60Hz 23A Power cord length: 2.7m (Round terminal R3.5-5S, power distribution board connection) Weight: Approx. 25kg Temperature control range: within ±0.5℃ Temperature control range (℃): Room temperature +25 to 90 *Performance is based on an ambient temperature of 25°C, 25L of water, and the lid closed. This product can be provided with validation services (IQ/OQ). Please feel free to contact us. *Validation service refers to the performance of installation qualification (IQ) and operational qualification (OQ) at the customer's site and the submission of an inspection report. *Please note that the power supply must be directly connected to the switchboard.
