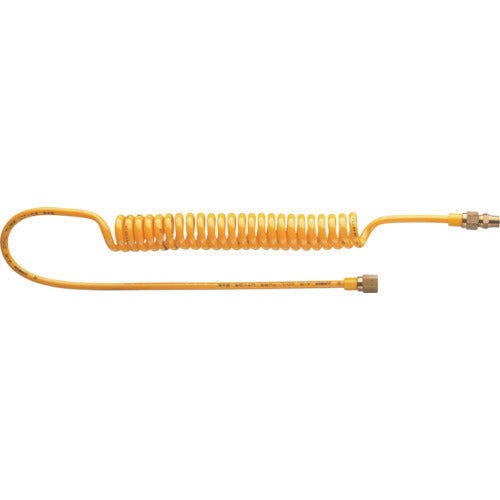

Junkosha Air Coil Tube Set UTF 1-10X6.5mm Yellow UTF-10-400L-Y 1 piece

Catalog number: UTF-10-400L-Y Features: ●Polyurethane tube processed into a coil shape. ●Ideal for centralized piping of elastic parts. ●Excellent mechanical strength, especially abrasion resistance. ●Flexible yet with high resilience. ●Standard color: Moss green Applications: ●For piping in moving and telescopic parts of equipment ●For industrial robots ●For air tools Specifications: ●Coil diameter (mm): 50 ●Color: Yellow ●Hose inner diameter x outer diameter (mm): 6.5x10 ●Usage range (m): 4 ●Total length (mm): 1000 ●Coil length (mm): 400 ●Maximum usable dimensions (m): 4 ●Outer diameter (mm): 10 ●Inner diameter (mm): 6.5 ●Maximum operating pressure (MPa): 0.7 ●Usage temperature range (℃): -20 to 60 (air), 0 to 50 (water) ●Usage fluid: air, water ●Usage fluid: air, water ●Usage temperature range: -20 to 60℃ (air), 0 to 50℃ (water) ●Maximum operating pressure: 0.7MPa (at 23℃) ●Connection fittings: G1/4 male and female threads Material/Finish: ●Water-resistant soft polyurethane Caution: ●Fittings: One end has a fixed female nipple (with G(PF)1/4 male seat surface), and the other end has a rotating female nipple (with G(PF)1/4 male seat surface) and an R(PT)1/4 male-male service nipple. *When running tap water, residual chlorine may affect the water.
