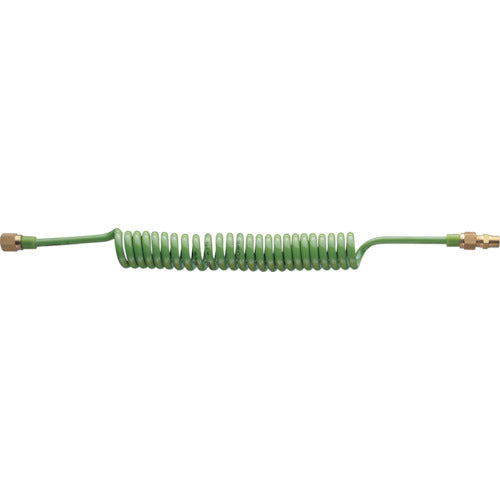

Junkosha Air Coil Tube Set UTF 1-8X5mm Moss Green UTF-08-600L-MG 1 piece

Catalog number: UTF-08-600L-MG Features: ●Polyurethane tube processed into a coil shape. ●Ideal for centralized piping of elastic parts. ●Excellent mechanical strength, especially abrasion resistance. ●Flexible and also has high resilience. ●Standard color: Moss green Applications: ●For piping in moving and telescopic parts of equipment ●For industrial robots ●For air tools Specifications: ●Coil diameter (mm): 40 ●Color: Moss green ●Hose inner diameter x outer diameter (mm): 5x8 ●Usage range (m): 6 ●Total length (mm): 1200 ●Coil length (mm): 600 ●Maximum usable dimensions (m): 6 ●Outer diameter (mm): 8 ●Inner diameter (mm): 5 ●Maximum operating pressure (MPa): 0.7 ●Operating temperature range (℃): -20 to 60 (air), 0 to 50 (water) ●Usable fluid: air, water ●Usable fluid: air, water ●Operating temperature range: -20 to 60℃ (air), 0 to 50℃ (water) ●Maximum operating pressure: 0.7MPa (at 23℃) ●Connection fittings: G1/4 male and female threads Material/Finish: ●Water-resistant soft polyurethane Caution: ●Fittings: One end has a fixed female nipple (with G(PF)1/4 male seat surface), and the other end has a rotating female nipple (with G(PF)1/4 male seat surface) and an R(PT)1/4 male-male service nipple. *When running tap water, residual chlorine may affect the water.
