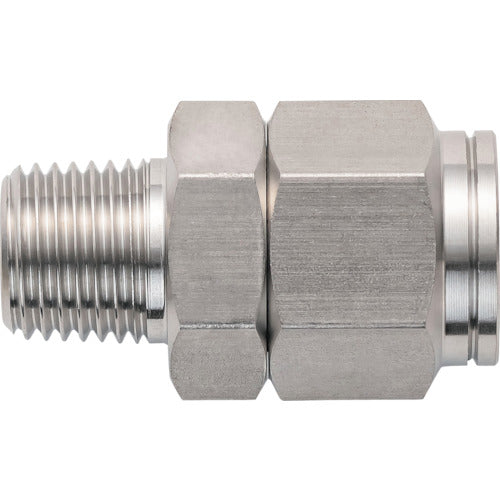

Junkosha Stainless Steel Fitting Nipple (Inch Series) 12.70 x 9.56 mm PT3/8 N-1/2-PT3/8-SUS 1 pc

Catalog number: N-1/2-PT3/8-SUS Features: ● Made of highly corrosion-resistant SUS316. ● Can be used over a wide temperature range from low to high. ● Dedicated fittings optimally designed for each tube material can be selected. ● The tube will not be cut off by over-tightening the cap nut. ● There will be no abnormalities in the connection until the tube bursts. ● There is no need to manage the tightening torque of the cap nut. Applications: ● For piping of corrosive fluids ● For hydraulic piping ● For rust-proof piping Specifications: ● Compatible tube outer diameter D (mm): 12.7 ● Hexagonal side (mm): 19 ● Connection diameter: PT3/8 ● Operating temperature range (℃): -65 to 180 (air), 0 to 180 (water), -65 to 180 (corrosive fluid) ● Fluid used: air, water, corrosive fluid ● Compatible fitting size D (mm): 12.7 ● Hexagonal side (mm) body: 19 ● Compatible tube inner diameter (mm): 9.56 ● Hexagonal side (mm) mounting nut: 19 ● Fluid temperature (℃): -65 to 180℃ (air), 0 to 180℃ (water), -65 to 180℃ (corrosive fluid) ● Maximum operating pressure: Complies with the maximum operating pressure of the tube ● Maximum vacuum pressure used: 0.014kPa or more ● Compatible tubes: Multilayer tube AP1, AP4, Fluorine tube TA, TF, Nylon tube AS1, AS4 (air, water only) Material/Finish: ●Stainless steel (SUS316) Note: ●If the operating temperature range of the tube is within the operating temperature range of the fitting, take priority over the operating temperature range of the tube.
