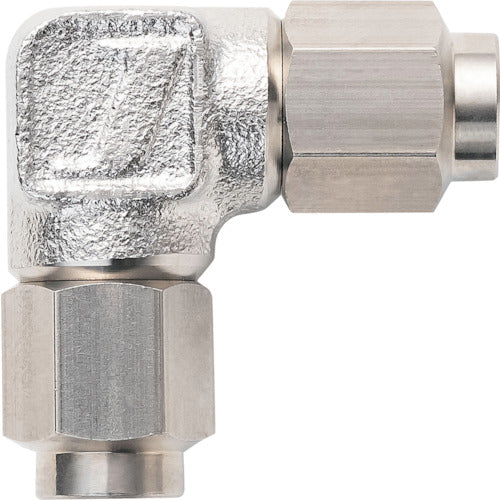

Junkosha Stainless Steel Fitting Union Elbow (Millimeter Series) 4 x 2 mm LU-4X2-SUS 1 pc

Catalog number: LU-4X2-SUS Features: ● Made of highly corrosion-resistant SUS316. ● Can be used over a wide temperature range from low to high. ● Dedicated fittings optimally designed for each tube material can be selected. ● The tube will not break due to over-tightening of the cap nut. ● There will be no abnormalities in the connection until the tube bursts. ● There is no need to manage the tightening torque of the cap nut. Uses: ● For piping corrosive fluids ● For hydraulic piping ● For rust-proof piping Specifications: ● Suitable tube outer diameter D (mm): 4 ● Hexagonal side (mm): 12 ● Suitable tube outer diameter D1 (mm): 4 ● Suitable tube outer diameter D2 (mm): 4 ● Fluid temperature (℃): -65 to 180 (air), 0 to 180 (water), -65 to 180 (corrosive fluid) ● Fluid used: air, water, corrosive fluid ● Suitable tube inner diameter (mm): 2 ● Hexagonal side (mm) body: 12 ● Hexagonal side (mm) mounting nut: 10 ● Maximum operating pressure: Complies with the maximum operating pressure of the tube ● Maximum vacuum pressure used: 0.014 kPa or more ● Suitable tubes: Multilayer tubes AP1, AP4, Fluorine tubes TA, TF, Nylon tubes AS1, AS4 (air, water only) Material/Finish: ● Stainless steel (SUS316) Note: If the operating temperature range of the tube is within the operating temperature range of the fitting, the operating temperature range of the tube should take priority.
