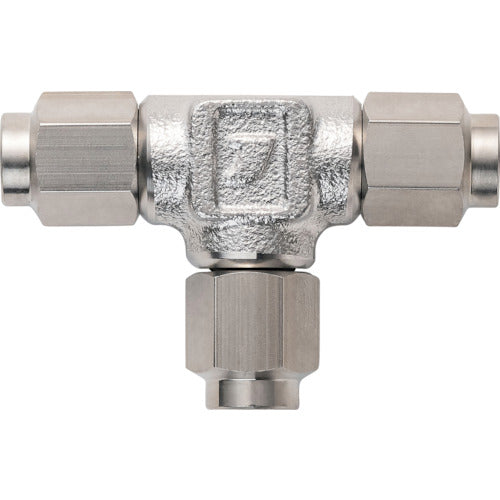

Junkosha Stainless Steel Fitting Union Tee (Millimeter Series) 12 x 10 mm TU-12X10-SUS 1 pc

Catalog number: TU-12X10-SUS Features: ● Made of highly corrosion-resistant SUS316. ● Can be used over a wide temperature range from low to high. ● Dedicated fittings optimally designed for each tube material can be selected. ● The tube will not run out of torque due to over-tightening the cap nut. ● There will be no abnormalities in the connection until the tube bursts. ● There is no need to manage the tightening torque of the cap nut. Applications: ● For piping of corrosive fluids ● For hydraulic piping ● For rust-proof piping Specifications: ● Compatible tube outer diameter D (mm): 12 ● Hexagonal side (mm): 19 ● Compatible tube outer diameter D1 (mm): 12 ● Compatible tube outer diameter D2 (mm): 12 ● Compatible tube outer diameter D3 (mm): 12 ● Fluid temperature (℃): -65 to 180 (air), 0 to 180 (water), -65 to 180 (corrosive fluid) ● Fluid used: air, water, corrosive fluid ● Compatible tube inner diameter (mm): 10 ● Hexagonal side (mm) body: 19 ● Hexagonal Diagonal width (mm) mounting nut: 19 ● Fluid used: air, water, corrosive fluids ● Fluid temperature: -65 to 180°C (air), 0 to 180°C (water), -65 to 180°C (corrosive fluids) ● Maximum operating pressure: Complies with the maximum operating pressure of the tube ● Maximum operating vacuum pressure: 0.014 kPa or more ● Applicable tubes: Multi-layer tubes AP1, AP4, fluoro tubes TA, TF, nylon tubes AS1, AS4 (air and water only) Material/Finish: ● Stainless steel (SUS316) Note: ● If the operating temperature range of the tube is within the operating temperature range of the fitting, the operating temperature range of the tube should take priority.
