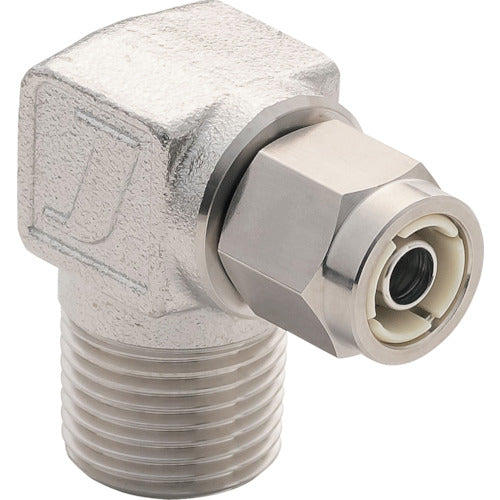

Junkosha Stainless Steel Fitting U2S Series Elbow 10 x 6.5 mm PT3/8 L-1065-03-US2 1 pc

Catalog number: L-1065-03-US2 Features: ● Stainless steel fittings compatible with flexible tubes such as polyurethane tubes and THV tubes. ● To prevent the tube from twisting out, a cap nut with a built-in sleeve (originally developed by Junkosha) is used. ● No need to manage the tightening torque of the cap nut. Applications: ● For piping of corrosive fluids ● For hydraulic piping ● For rust-prevention piping Specifications: ● Compatible tube outer diameter D (mm): 10 ● Connection port size: PT3/8 ● Hexagonal side (mm): 19 ● Operating temperature range (℃): Air: -20 to 60℃, Water: 0 to 50℃, Fluorine-based refrigerant: 0 to 50℃ ● Fluid used: Air, water, Fluorine-based refrigerant ● Compatible tube inner diameter (mm): 6.5 ● Hexagonal side (mm) body: 19 ● Hexagonal side (mm) mounting nut: 17 ● Fluid used: Air, water, Fluorine-based refrigerant ● Fluid temperature: Air: -20 to 60℃, Water: 0 to 50℃, Fluorine-based refrigerant: 0 to 50℃ ● Maximum operating pressure: Tube Compliant with maximum operating pressure of the fitting. ● Operating vacuum pressure: 0.014 kPa or more. ● Applicable tubing (when the fluid is air): Polyurethane tubing (US, UH, UF, UFL, UE, UC), multi-layer tubing (UP1). ● Applicable tubing (when the fluid is water): Polyurethane tubing (UF, UFL), multi-layer tubing (UP1). ● Applicable tubing (when the fluid is fluorinated refrigerant): Polyurethane tubing (US, UH, UF, UFL, UE, UC), multi-layer tubing (UP1). Material/Finish: ● Stainless steel (SUS316) Note: ● If the operating temperature range of the tube is within the operating temperature range of the fitting, the operating temperature range of the tube should take priority.
