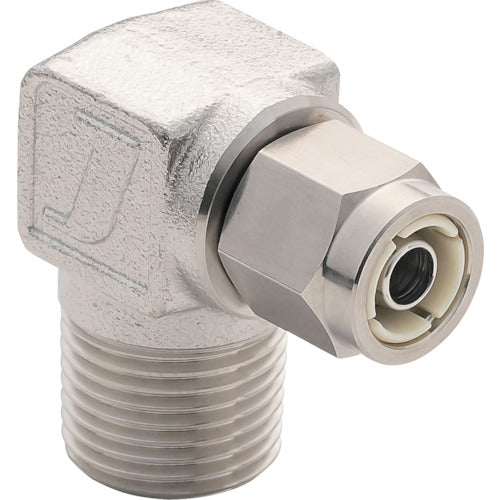

Junkosha Stainless Steel Fitting U2S Series Elbow 12 x 8 mm PT1/2 L-1280-04-US2 1 pc

Catalog number: L-1280-04-US2 Features: ●Stainless steel fittings compatible with flexible tubes such as polyurethane tubes and THV tubes. ●Uses a cap nut with a built-in sleeve (originally developed by Junkosha) to prevent the tube from twisting out. ●No need to manage the tightening torque of the cap nut. Applications: ●For piping of corrosive fluids ●For hydraulic piping ●For rust-prevention piping Specifications: ● Compatible tube outer diameter D (mm): 12 ● Connection port size: PT1/2 ● Hexagonal side size (mm): 23 ● Operating temperature range (℃): Air: -20 to 60℃, Water: 0 to 50℃, Fluorine-based refrigerant: 0 to 50℃ ● Fluid used: Air, water, Fluorine-based refrigerant ● Compatible tube inner diameter (mm): 8 ● Hexagonal side size (mm) Body: 23 ● Hexagonal side size (mm) Mounting nut: 19 ● Fluid temperature (℃): Air: -20 to 60℃, Water: 0 to 50℃, Fluorine-based refrigerant: 0 to 50℃ ● Maximum operating pressure: According to the maximum operating pressure of the tube Base: ● Vacuum pressure used: 0.014 kPa or higher ● Applicable tubing (when the fluid used is air): Polyurethane tubing (US, UH, UF, UFL, UE, UC), multi-layer tubing (UP1) ● Applicable tubing (when the fluid used is water): Polyurethane tubing (UF, UFL), multi-layer tubing (UP1) ● Applicable tubing (when the fluid used is fluorinated refrigerant): Polyurethane tubing (US, UH, UF, UFL, UE, UC), multi-layer tubing (UP1) Material/Finish: ● Stainless steel (SUS316) Note: ● If the operating temperature range of the tubing is within the operating temperature range of the fitting, the operating temperature range of the tubing should take priority.
