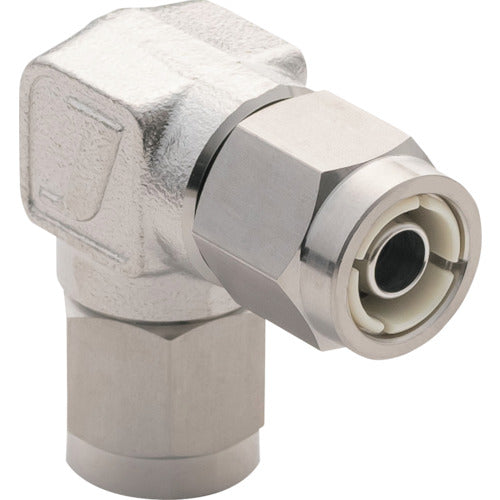

Junkosha Stainless Steel Fitting U2S Series Union Elbow 10 x 6.5 mm LU-1065-US2 1 pc

Catalog number: LU-1065-US2 Features: ● Stainless steel fittings compatible with flexible tubes such as polyurethane tubes and THV tubes. ● To prevent the tube from twisting out, a cap nut with a built-in sleeve (originally developed by Junkosha) is used. ● No need to manage the tightening torque of the cap nut. Applications: ● For piping of corrosive fluids ● For hydraulic piping ● For rust-prevention piping Specifications: ● Compatible tube outer diameter D (mm): 10 ● Hexagonal side (mm): 19 ● Compatible tube outer diameter D1 (mm): 10 ● Compatible tube outer diameter D2 (mm): 10 ● Fluid temperature (℃): Air: -20 to 60℃, Water: 0 to 50℃, Fluorine-based refrigerant liquid: 0 to 50℃ ● Fluid used: Air, water, Fluorine-based refrigerant liquid ● Compatible tube inner diameter (mm): 6.5 ● Hexagonal side (mm) Body: 19 ● Hexagonal side (mm) Mounting nut: 17 ● Fluid used: Air, water, Fluorine-based refrigerant liquid ● Fluid temperature: Air: -20 to 60℃, Water: 0 to 50℃, Fluorine-based refrigerant liquid: 0 to 50℃ ●Maximum operating pressure: Conforms to the maximum operating pressure of the tube●Operating vacuum pressure: 0.014 kPa or more●Applicable tube (when the fluid is air): Polyurethane tube (US, UH, UF, UFL, UE, UC), multi-layer tube (UP1)●Applicable tube (when the fluid is water): Polyurethane tube (UF, UFL), multi-layer tube (UP1)●Applicable tube (when the fluid is fluorinated refrigerant): Polyurethane tube (US, UH, UF, UFL, UE, UC), multi-layer tube (UP1) Material/Finish: ●Stainless steel (SUS316) Note: ●If the operating temperature range of the tube is within the operating temperature range of the fitting, the operating temperature range of the tube should take priority.
