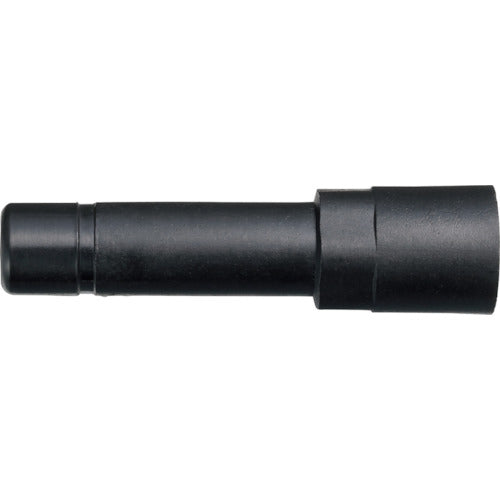

Junkosha One-touch fitting M series stop plug 8mm PSM-8-PM 1 piece

Catalogue number: PSM-8-PM Features: * Metal parts are electroless nickel plated. * R (PT) threads have a different colored sticker applied to them, so that the thread size can be identified at a glance. * The body can be positioned according to the direction in which the tube is removed. * The joint between the R (PT) thread and the resin of elbows, tapes, etc. rotates, allowing free positioning according to the direction in which the tube is removed after the fitting is attached. * In addition, the screw can be tightened while the resin part is fixed. * The tube grip rotates smoothly inside the fitting, preventing the tube from getting twisted out. Uses: ● For general pneumatic and water pressure piping ● For robots and labor-saving equipment Specifications: ● Compatible tube outer diameter D (mm): 8 ● Compatible tube outer diameter (mm): 8 ● Operating temperature range (℃): Air: 0 to 60℃, Water: 0 to 30℃ (Do not freeze.) ● Fluid used: Air, water ● Fluid used: Air, water ● Fluid temperature: Air: 0 to 60℃, Water: 0 to 30℃ (Do not freeze.) ● Maximum operating pressure: Air: 0.97MPa, Water: 0.19MPa ● Vacuum pressure used (if the fluid used is air): 1.4kPa or more ● Applicable tubes (if the fluid used is air): Nylon tubes (AS1, AS4), Spot welding equipment tubes (SP4, SPF), Polyurethane tubes (UH, UF, UFL, UE, UC) ● Applicable tubes (if the fluid used is water): Nylon tubes (AS1), Spot welding equipment tubes (SP4, SPF) Material/Finish: Body (Resin): Polybutylene terephthalate (PBT) Caution: If the maximum working pressure of the tube is lower than the pressure above, please use it at or below the maximum working pressure of the tube. If using a tube other than the applicable tube, please use a tube with an outer diameter precision of within ±0.1mm for nylon and within ±0.15mm for urethane, and with a roundness of within 0.2mm (maximum outer diameter - minimum outer diameter).
