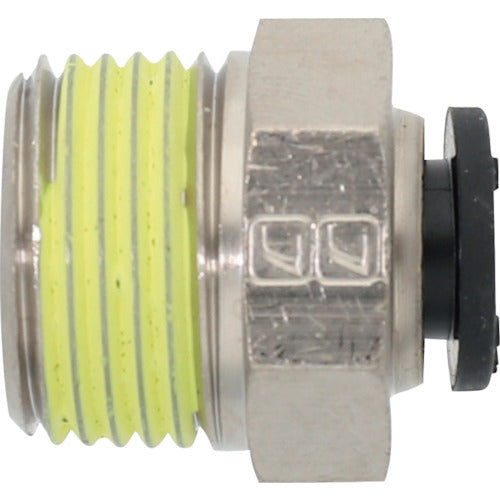

Junkosha One-touch fitting M series nipple 10mm PT3/8 PNM-10-PT3/8-BSM 1 piece

Catalog number: PNM-10-PT3/8-BSM Features: ● Metal parts are electroless nickel plated. ● R (PT) threads have a colored sticker applied to them that identifies the thread size at a glance. ● The body can be positioned according to the direction in which the tube is removed. ● The joint between the R (PT) thread and the resin of elbows, tapes, etc. rotates, allowing free positioning according to the direction in which the tube is removed after the fitting is attached. ● The screw can be tightened while the resin part is fixed. ● The tube grip rotates smoothly inside the fitting, preventing the tube from getting twisted out. Uses: ● For general pneumatic and hydraulic piping ● For robots and labor-saving equipment Specifications: ● Applicable tube outer diameter D (mm): 10 ● Hexagonal face size (mm): 17 ● Connection size: PT3/8 ● Operating temperature range (℃): Air: 0 to 60℃, Water: 0 to 30℃ (Do not freeze.) ● Fluid used: Air, water ● Fluid temperature (℃): 0 to 60℃ (air), 0 to 30℃ (water *Do not freeze) ● Maximum operating pressure: 0.97MPa (air), 0.19MPa (water) ● Vacuum pressure used: 1.4kPa or more (if the fluid used is air) ● Applicable tubes (if the fluid used is air): Nylon tubes (AS1, AS4), Spot welding equipment tubes (SP4, SPF), Polyurethane tubes (UH, UF, UFL, UE, UC) ● Applicable tubes (if the fluid used is water): Nylon tubes (AS1), Spot welding equipment tubes (SP4, SPF) Material/Finish: Body (metal parts): Brass (nickel plated) Note: If the maximum working pressure of the tube is lower than the pressure above, please use it at or below the maximum working pressure of the tube. If using a tube other than the applicable tube, please use a tube with an outer diameter precision of within ±0.1mm for nylon and within ±0.15mm for urethane, and with a roundness of within 0.2mm (maximum outer diameter - minimum outer diameter).
