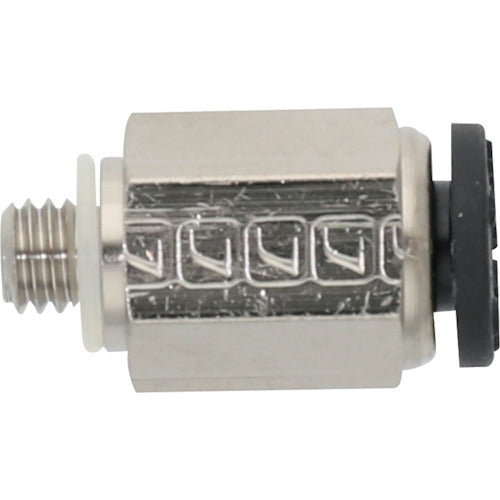

Junkosha One-touch fitting M series nipple 4mm M5 PNM-4-M5-BSM 1 piece

Catalog number: PNM-4-M5-BSM Features: ● Metal parts are electroless nickel plated. ● R (PT) threads have a colored sticker for each R (PT) thread, allowing the thread size to be identified at a glance. ● The body can be positioned according to the direction in which the tube is removed. ● The joint between the R (PT) thread and the resin of elbows, tapes, etc. rotates, allowing free positioning according to the direction in which the tube is removed after the fitting is attached. ● The screw can be tightened while the resin part is fixed. ● The tube grip rotates smoothly inside the fitting, preventing the tube from being twisted out. Applications: ● For general pneumatic and hydraulic piping. ● For robots and labor-saving equipment. Specifications: ● Compatible tube outer diameter D (mm): 4 ● Hexagonal side (mm): 10 ● Connection diameter: M5 ● Operating temperature range (℃): Air: 0 to 60℃, Water: 0 to 30℃ (Do not freeze.) ● Fluid used: Air, water ● Fluid temperature (℃): 0 to 60℃ (air), 0 to 30℃ (water *Do not freeze) ● Maximum operating pressure: 0.97MPa (air), 0.19MPa (water) ● Vacuum pressure used: 1.4kPa or more (if the fluid used is air) ● Applicable tubes (if the fluid used is air): Nylon tubes (AS1, AS4), Spot welding equipment tubes (SP4, SPF), Polyurethane tubes (UH, UF, UFL, UE, UC) ● Applicable tubes (if the fluid used is water): Nylon tubes (AS1), Spot welding equipment tubes (SP4, SPF) Material/Finish: ● Body (metal parts): Brass (nickel-plated) Note: If the maximum working pressure of the tube is lower than the above pressure, please use it at or below the maximum working pressure of the tube. If using a tube other than the applicable tube, please use a tube with an outer diameter precision of within ±0.1 mm for nylon and within ±0.15 mm for urethane, and with a roundness of within 0.2 mm (maximum outer diameter - minimum outer diameter).
