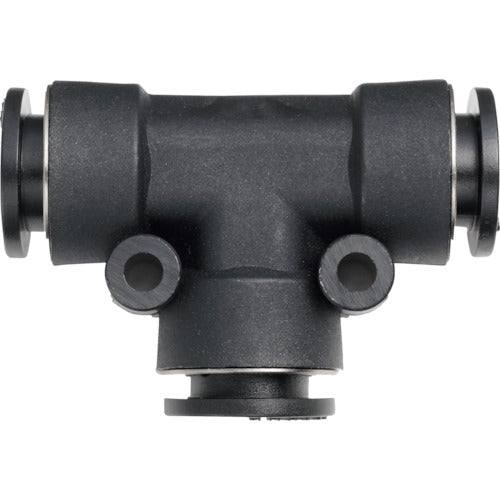

Junkosha One-touch fitting M series Union tape 8mm PTUM-8-PM 1 piece

Catalog number: PTUM-8-PM Features: ● Metal parts are electroless nickel plated. ● R (PT) threads have a colored sticker applied to them that identifies the thread size at a glance. ● The body can be positioned according to the direction in which the tube is removed. ● The joint between the R (PT) thread and the resin of elbows, tapes, etc. rotates, allowing free positioning according to the direction in which the tube is removed after the fitting is attached. ● In addition, the screws can be tightened while the resin part is fixed. ● The tube grip rotates smoothly inside the fitting, preventing the tube from getting twisted out. Applications: ● For general pneumatic and hydraulic piping ● For robots and labor-saving equipment Specifications: ● Suitable tube outer diameter D (mm): 8 ● Suitable tube outer diameter D1 (mm): 8 ● Suitable tube outer diameter D2 (mm): 8 x 8 ● Suitable tube outer diameter D3 (mm): 8 ● Fluid temperature (℃): Air: 0 to 60℃, Water: 0 to 30℃ (Do not freeze.) ● Fluid used: Air, water ● Fluid used: Air, water ● Fluid temperature: Air: 0 to 60℃, Water: 0 to 30℃ (Do not freeze.) ● Maximum operating pressure: Air: 0.97MPa, Water: 0.19MPa ● Vacuum pressure used (when air is used): 1.4kPa or more ● Applicable tube (when air is used): Nylon tube (AS1, AS4), Spot welding equipment tube (SP4, SPF), Polyurethane tube ( UH, UF, UFL, UE, UC) ●Applicable tubes (when the fluid used is water): Nylon tubes (AS1), tubes for spot welding equipment (SP4, SPF ) Material/Finish: ●Main body (plastic part): Polybutylene terephthalate (PBT) Caution: ●If the maximum working pressure of the tube is lower than the above pressure, please use it at or below the maximum working pressure of the tube. ●When using tubes other than the applicable ones, please use tubes with an outer diameter precision of within ±0.1mm for nylon and within ±0.15mm for urethane, and with a roundness of within 0.2mm (maximum outer diameter - minimum outer diameter).
