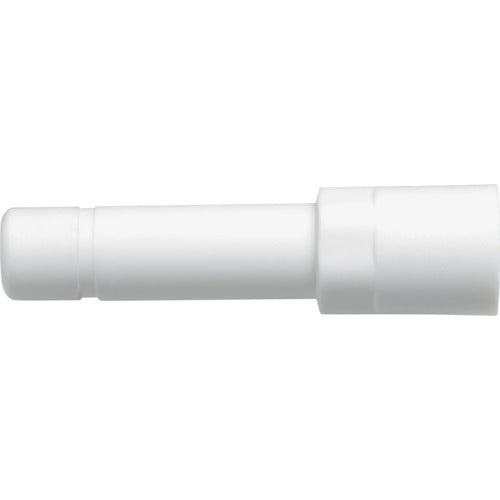

Junkosha One-touch Fitting W Series Stop Plug 10mm WS-10 1 pc

Catalog number: WS-10 Features: ●All resin parts are UL94V-0 equivalent. ●All resin parts are UR (PT) The pull-out strength of the screw resin press-in part is 30% higher than conventional products. ●The new tube grip mechanism dramatically improves impact resistance. ●The tube grip rotates smoothly inside the fitting, preventing the tube from being cut due to rotation. ●All sealing materials such as O-rings and V-seals use water-resistant NBR. ●No sealing tape is required. ●R (PT) threads are sealed. ●The body can be positioned according to the tube removal direction. ●The joint between the R (PT) threads and resin of elbows, tapes, etc. rotates, allowing free positioning according to the tube removal direction after fitting installation. Uses: ● For pneumatic and hydraulic piping for automotive spot welding equipment ● For piping where impact resistance is required ● For flame-retardant piping Specifications: ● Applicable tube outer diameter D (mm): 10 ● Applicable tube outer diameter (mm): 10 ● Operating temperature range (℃): Air: 0 to 60℃, Water: 0 to 60℃ (Do not freeze.) ● Fluid used: Air, water ● Fluid used: Air, water ● Fluid temperature: 0 to 60℃ (air), 0 to 60℃ (water *Do not freeze) ● Maximum operating pressure: 0.97MPa (air), 0.29MPa (water) ● Vacuum pressure used: 1.4kPa or more (when the fluid used is air) ● Applicable tube (when the fluid used is air): Nylon tube (AS1, AS4), Spot welding equipment tube (SP4, SPF), Polyurethane tube (UH, UF, UFL, UE, UC) ● Applicable tube (when the fluid used is water): Nylon tube (AS1), Spot welding equipment tube (SP4, SPF) Material/Finish: Body (Resin): Flame-retardant polybutylene terephthalate (PBT) (UL94V-0 equivalent) Caution: If the maximum working pressure of the tube is lower than the above pressure, please use it at or below the maximum working pressure of the tube. If using a tube other than the applicable tube, please use a tube with an outer diameter precision of within ±0.1mm for nylon and within ±0.15mm for urethane, and with a roundness of within 0.2mm (maximum outer diameter - minimum outer diameter).
