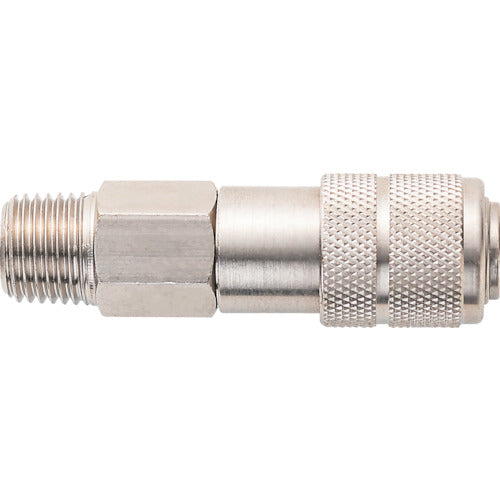

Junkosha Small one-touch coupling Male socket R1/4 MS-M1/4 1 pc

Catalog number: MS-M1/4 Features: ● Small, one-touch coupling developed for plastic tubes. ● Simple structure that can be easily attached and detached with one touch. ● O-ring seals the sides of the plug and socket valve. ● High durability against repeated attachment and detachment, co-vibration and impact. ● Small, robust, and good flowability. ● Socket side opens and closes automatically when attached and detached. Applications: ● For attaching and detaching piping for various pneumatic equipment ● For attaching and detaching piping for various pneumatic tools Specifications: ● Connection port size: R1/4 ● Hexagonal face (mm): 14 ● Maximum operating pressure (MPa): 0.88 ● Operating temperature range (℃): 0 to +60 ● Operating pressure: 0.88 ● Fluid used: Air ● Counterpart mounting size: R1/4 ● Fluid used: Air ● Fluid temperature: 0 to 60℃ ● Maximum operating pressure: 0.88MPa Material/Finish: ● Body (metal part): Brass (electroless nickel plating)
