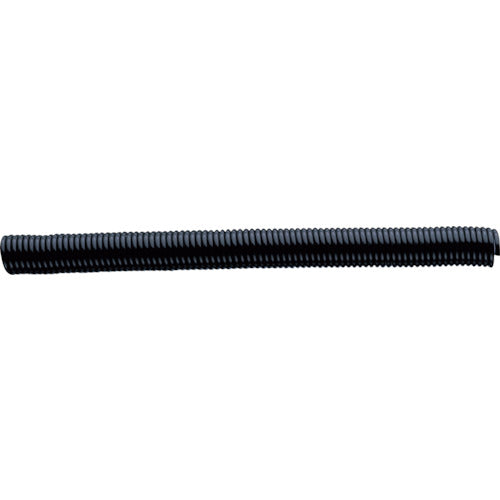

Junkosha Ultra Soft Nylon Coil Tube AT4 10X7.5X10 Black AT4-10 1 piece

Catalogue number: AT4-10 Features: ●Excellent mechanical strength, especially pressure resistance, abrasion resistance, and flex fatigue resistance. ●Excellent heat and cold resistance (resin no-load continuous use temperature -40 to +93°C). ●Highly flexible. ●Excellent oil and chemical resistance (especially alkali resistance). ●No risk of toxic substances leaching. ●Lightweight and easy to work with. Uses: ● For oil and pneumatic equipment ● For centralized lubrication equipment ● For painting equipment ● For chemical plants ● For air tools such as air drivers and air hammers ● For piping of moving parts Specifications: ● Coil diameter (mm): 95 ● Color: Black ● Usage range (m): 7 ● Coil length (mm): 400 ● Maximum usage dimension (m): 7 ● Outer diameter (mm): 10 ● Inner diameter (mm): 7.5 ● Maximum operating pressure (MPa): 0.78 ● Operating temperature range (℃): -20 to +60 (air), 0 to +50 (water), -20 to +60 (oil) ● Fluids used: air, water, oil ● Number of cores: 1 ● Fluids used: air, water, oil ● Operating temperature range: -20 to +60℃ (air), 0 to +50℃ (water), -20 to +50℃ (oil) ● Maximum operating pressure: 0.78MPa (at 23℃) ● Applicable fittings: Brass fittings Stainless steel fittings Material/Finish: Extra soft nylon Note: Please inquire about other fluids.
