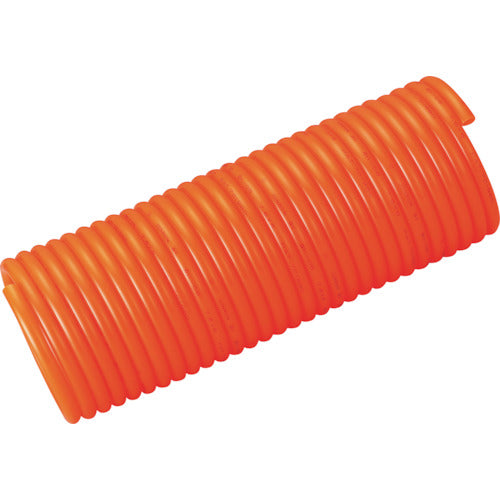

Junkosha Soft Nylon Coil Tube AT1 11X9X10 A Type Orange AT1-09-10A 1 Piece

Catalogue number: AT1-09-10A Features: ●Excellent mechanical strength, especially pressure resistance, abrasion resistance, and flex fatigue resistance. ●Excellent heat and cold resistance (resin no-load continuous use temperature -40 to +93°C). ●Highly flexible. ●Excellent oil and chemical resistance (especially alkali resistance). ●No risk of toxic substances leaching. ●Lightweight and easy to work with. Applications: ●For oil and pneumatic equipment ●For centralized lubrication equipment ●For painting equipment ●For chemical plants ●For air tools such as air drivers and air hammers ●For piping of moving parts Specifications: ● Coil diameter (mm): 115 ● Color: Orange ● Hose inner diameter x outer diameter (mm): 9 x 11 ● Usage range (m): 7 ● Total length (mm): 380 ● Coil length (mm): 380 ● Maximum usage dimension (m): 7 ● Outer diameter (mm): 11 ● Inner diameter (mm): 9 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): -20 to 70 (air), 0 to 60 (water), -20 to 60 (oil) ● Operating fluid: air, water, oil ● Number of cores: 1 ● Operating fluid: air, water, oil ● Operating temperature range: -20 to +70℃ (air), 0 to +60℃ (water), -20 to +60℃ (oil) ● Maximum operating pressure: 1.0MPa (at 23℃) ● Applicable fittings: AT2 coil fittings Material/Finish: ● Soft nylon Note: ● Please inquire about other operating fluids.
