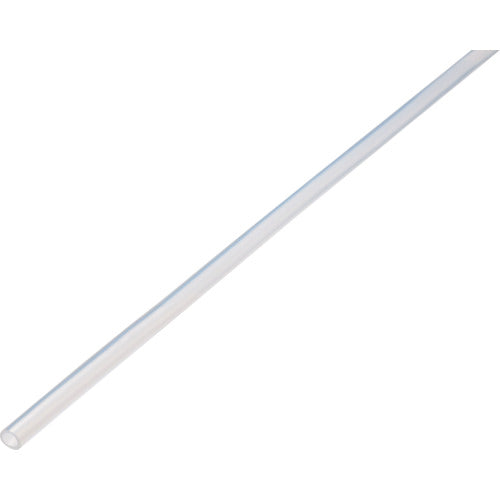

Junkosha Soft Nylon-Fluoropolymer Multilayer Tube AP1 8x6mm 20m Milky White AP1-0860-N-20 1 Roll

Catalogue number: AP1-0860-N-20 Features: ●The two-layer structure improves flexibility, kink resistance, and abrasion resistance that could not be achieved with fluorine tubing. ●The inner layer uses a fluoropolymer that has excellent water repellency against chemicals. ●The layers are completely bonded together by one-piece molding. Applications: ●For painting equipment. ●For dental equipment. ●For semiconductor manufacturing equipment. ●For transferring solvents. ●For oil and pneumatic equipment. ●For food manufacturing equipment. ●For transferring viscous fluids. ●For centralized lubrication equipment. ●For analytical equipment. Specifications: ●Color: Milky white ●Inner diameter (mm): 6 ●Outer diameter (mm): 8 ●Total length (m): 20 ●Minimum bending radius (mm): 35 ●Operating pressure (MPa): 1.4 ●Operating temperature range (℃): Air: -20 to +70, water, oil, organic solvents, etc.: 0 to +70 ●Suitable fluids: air, oil, water, organic solvents, etc. ●Room temperature burst pressure (MPa): 5.6 ●Operating fluid: air, oil, water, organic solvents, etc. ●Applicable fittings: Brass fittings, stainless steel fittings ●Operating temperature range: -20 to 70℃ (air), 0 to 70℃ (water, oil, organic solvents, etc.) Material/Finish: ●Soft nylon-fluoropolymer Caution: ●When using liquid as the fluid, the surge pressure should be the maximum operating pressure.
