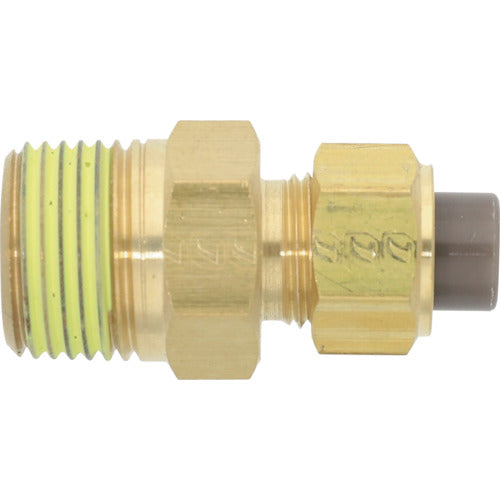

Junkosha Brass Fitting (Millimeter Series) Nipple 8 x 5mm PT3/8 PN-8X5-PT3/8-BS 1 pc

Catalog number: PN-8X5-PT3/8-BS Features: ●Brass fittings (metric series) conform to the Japanese Industrial Standard JIS B8381 "Pneumatic pipe fittings". ●Has a tube insert section and is tightened with a sleeve and cap nut, ensuring a secure connection. ●No abnormalities in the connection until the tube is broken. ●Comes with colored thread seals for each R (PT) thread size. Applications: ●For pneumatic piping ●For water pressure piping ●For hydraulic piping Specifications: ● Compatible tube outer diameter D (mm): 8 ● Hexagonal side (mm): 17 ● Connection size: PT3/8 ● Operating temperature range (℃): -20 to 60 (air), 0 to 60 (water), -20 to 60 (oil), -20 to 60 (organic solvents) ● Fluids used: air, water, oil, organic solvents ● Hexagonal side (mm) body: 17 ● Compatible tube inner diameter (mm): 5 ● Hexagonal side (mm) mounting nut: 14 ● Fluid temperature (℃): -20 to 60℃ (air), 0 to 60℃ (water), -20 to 60℃ (oil), -20 to 60℃ (organic solvents) ● Maximum operating pressure: Complies with the maximum operating pressure of the tube ● Operating vacuum pressure: 0.014kPa or more (excluding US, when the fluid used is air) ● Applicable tubes (when the fluid used is air): Nylon tubes (AS1, AS2, AS4), Spot welding equipment tubes (SP4, SPF), Polyurethane tubes ( US, UH, UF, UFL, UE, UC), Multi-layer tube (AP1, AP4, UP1) *Applicable tube (when fluid is water): Nylon tube (AS1, AS2, AS4), Spot welding equipment tube (SP4, SPF), Polyurethane tube (UF, UFL), Multi-layer tube (AP1, AP4, UP1) *Applicable tube (when fluid is oil): Nylon tube (AS1, AS2, AS4), Multi-layer tube (AP1, AP4, UP1) *Applicable tube (when fluid is organic solvent): Multi-layer tube (AP1, AP4, UP1) Material/Finish: *Brass Caution: *When fluid is air, it can be used up to +80°C. When fluid is water or oil, it can be used up to +70°C. However, please use a metal sleeve sold separately. *Do not freeze. ●If using a tube other than the applicable tube, please use a tube with an outer diameter precision of within ±0.1 mm for nylon and within ±0.15 mm for urethane, and with a roundness of within 0.2 mm (maximum outer diameter - minimum outer diameter).
