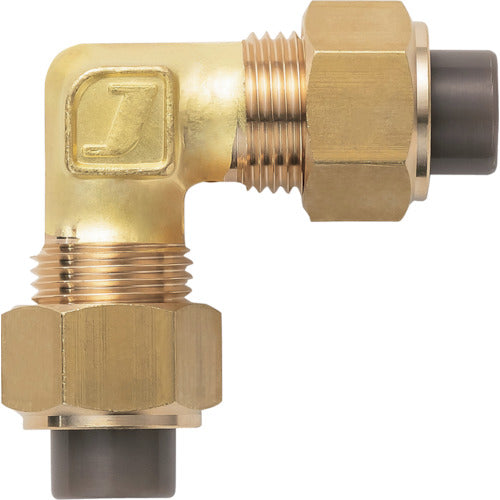

Junkosha Brass Fitting (Millimeter Series) Union Elbow 12 x 9 mm PLU-12X9-BS 1 pc

Catalog number: PLU-12X9-BS Features: ●Brass fittings (metric series) comply with the Japanese Industrial Standard JIS B8381 "Pneumatic pipe fittings". ●The mechanism has a tube insert and is tightened with a sleeve and cap nut, so the connection is secure. ●The connection is designed to be free of abnormalities until the tube breaks. ●R (PT) Colored screw seals for each screw size are included. Uses: ● For pneumatic piping ● For hydraulic piping ● For hydraulic piping Specifications: ● Compatible tube outer diameter D (mm): 12 ● Hexagonal side (mm): 19 ● Fluid temperature (℃): -20 to 60 (air), 0 to 60 (water), -20 to 60 (oil), -20 to 60 (organic solvents) ● Fluid used: air, water, oil, organic solvents ● Compatible tube inner diameter (mm): 9 ● Hexagonal side (mm) body: 14 ● Hexagonal side (mm) mounting nut: 19 ● Fluid used: air, water, oil, organic solvents ● Fluid temperature: -20 to 60℃ (air), 0 to 60℃ (water), -20 to 60℃ (oil), -20 to 60℃ (organic solvents) ● Maximum operating pressure: Complies with the maximum operating pressure of the tube ● Operating vacuum pressure: 0.014kPa or more (excluding US, when the fluid used is air) ● Applicable tube (when the fluid used is air): Nylon tube (AS1, AS2, AS4), Spot welding equipment tube (SP4, SPF), polyurethane tube (US, UH, UF, UFL, UE, UC), multi-layer tube (AP1, AP4, UP1) *Applicable tube (when fluid is water): Nylon tube (AS1, AS2, AS4), Spot welding equipment tube (SP4, SPF), polyurethane tube (UF, UFL), multi-layer tube (AP1, AP4, UP1) *Applicable tube (when fluid is oil): Nylon tube (AS1, AS2, AS4), multi-layer tube (AP1, AP4, UP1) *Applicable tube (when fluid is organic solvent): Multi-layer tube (AP1, AP4, UP1) Material/Finish: *Brass Caution: *When fluid is air, it can be used up to +80°C, and when fluid is water or oil, it can be used up to +70°C, but please use a metal sleeve sold separately. *Do not freeze. ●If using a tube other than the applicable tube, please use a tube with an outer diameter precision of within ±0.1 mm for nylon and within ±0.15 mm for urethane, and with a roundness of within 0.2 mm (maximum outer diameter - minimum outer diameter).
