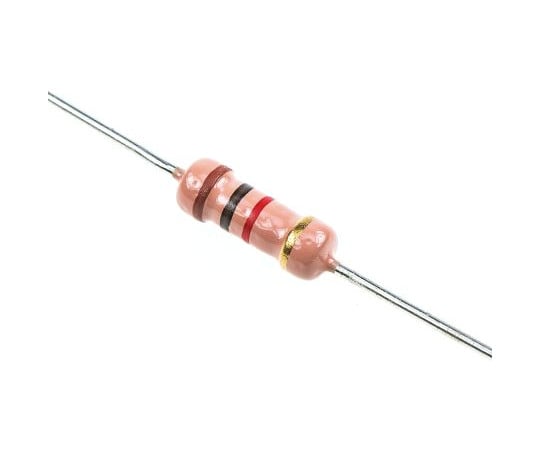

Carbon film resistor RS series 1kΩ 1W ±5% 1 bag (10 pieces) 707-8669 1 bag (10 pieces)

Carbon Film Resistor 1W The RS series carbon film axial leaded resistors offer excellent long term stability and standard solder plated copper leads. Typical applications are automotive, telecommunications, medical equipment, etc. Resistance: 1kΩ Rated power: 1W Tolerance: ±5% Technology: Carbon Film Series: RS Case Style: Ceramic Temperature coefficient: -500 to +350 ppm/℃ Termination Style: Axial Dimensions: 3.2 (Dia.) x 9mm Length: 9mm Diameter: 3.2mm Maximum operating temperature: +155°C Quantity: 10 pieces RoHS Compliant
