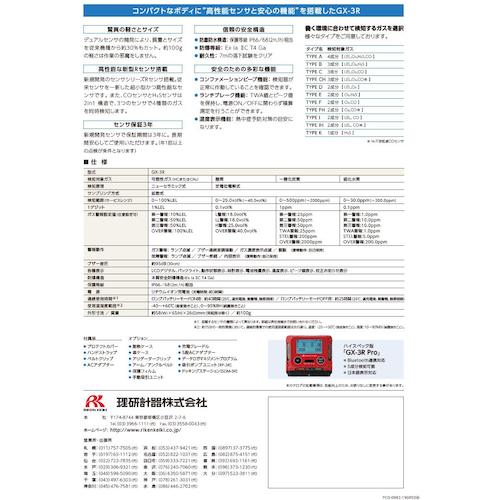

Riken Personal Wearable Multi-Gas Detector GX-3R Type A Isobutane Specifications GX-3R-A-HC 1 pc

Catalog number: GX-3R-A-HC Features: ●Rugged design that can withstand a 7m drop test and dustproof and waterproof structure, so you can use it safely even in harsh work environments. ●The smallest and lightest four-component gas detector in its class. ●Various types of lineup allow you to select the gas to detect according to your working environment. ●Includes a function to read 26 types of flammable gas (only when equipped with a flammable gas sensor). ●Rugged design (passes 7m drop test). ●Intrinsically safe explosion-proof structure. ●Dustproof and waterproof structure. ●Compatible with suction sampling by attaching an external dedicated suction pump unit (model: RP-3R (S)). ●Full standard accessories: Main unit protective cover, AC adapter, belt clip, strap (1 of each included). Uses: ●Prevents oxygen deficiency, poisoning, and explosion accidents at various work sites. Specifications: ● Target gases: Combustible gases, oxygen, hydrogen sulfide, carbon monoxide ● Width (mm): 58 ● Depth (mm): 26 ● Height (mm): 65 ● Protection class: Equivalent to IP66/68 (2m, 1h) ● Detection range: (%LEL) 0-100 (combustible gas) / (vol%) 0-25.0 (oxygen) / (ppm) 0-30.0 (hydrogen sulfide) / (ppm) 0-500 (carbon monoxide) ● Sampling method: Diffusion type ● Gas alarm: Display lamp flashing / Buzzer continuous modulated sound / Gas concentration display flashing / Vibration ● Fault alarm: System abnormality, sensor abnormality, low battery voltage, calibration failure ● Fault alarm display: Lamp flashing / Buzzer intermittent / Content display ● Display: LCD digital (7-segment), with backlight ●Various displays: operation status, clock, battery level, temperature, peak value, calibration notification ●Buzzer sound pressure (dB): approx. 95 (30 cm) ●Maximum number of records (items) in data logger function: 3600 (interval: 5 minutes/settings can be changed) ●Power source: Lithium-ion rechargeable battery (charging time: approx. 3 hours) ●Continuous use time: [When long battery mode is ON] Approx. 40 hours (25°C, after full charge, no alarm, no lighting) [When long battery mode is OFF] Approx. 25 hours (25°C, after full charge, no alarm, no lighting) ●Explosion-proof structure: Intrinsically safe explosion-proof structure ●Intrinsically safe explosion-proof structure (Exia［［Ｒ２］］ CT4 Ga) Set contents/accessories: ●Protective cover x 1 ●Hand strap x 1 ●Belt clip x 1 ●AC adapter x 1
