The diaphragm and valve are integrated to achieve light weight and compact size.

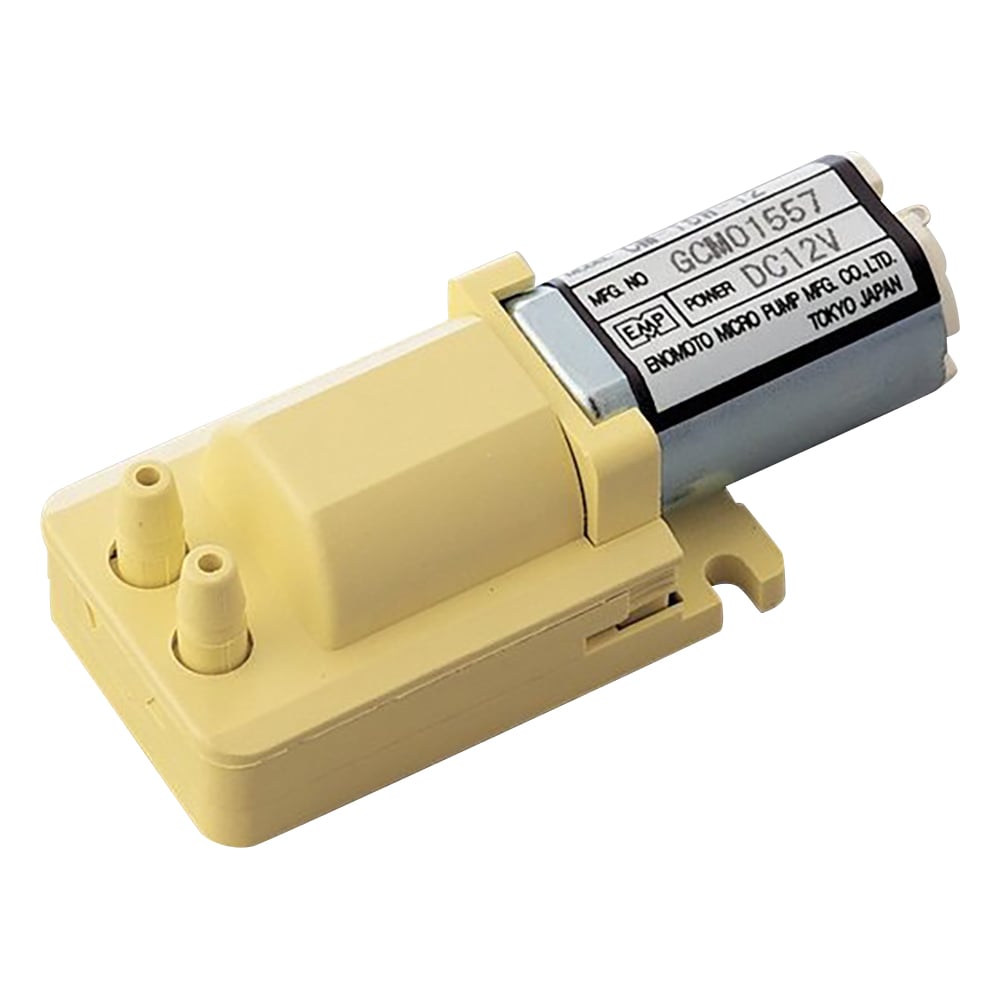

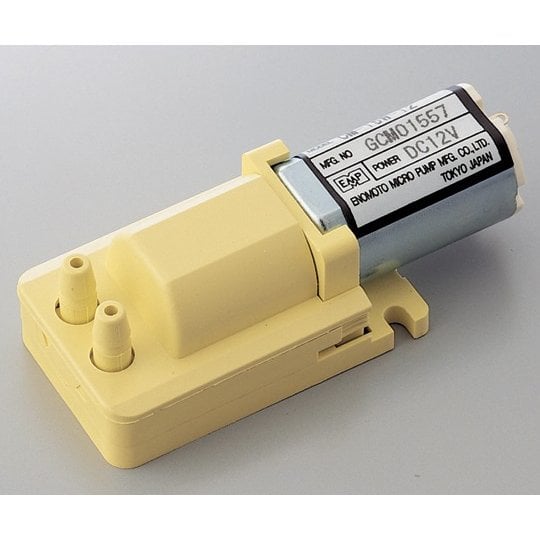

It has self-priming capability, so priming water is not required. Model number: CM-15W-12
Maximum discharge pressure: 30kPa or more
Maximum suction pressure: -20kPa or more
Current: 200mA
Size: 74 x 31 x 23.5 mm
Wetted parts material: EPDM (ethylene propylene rubber) and PBT resin
Pipe fitting: φ5.5mm hose end
Voltage: DC12V
Maximum discharge flow rate: 100mL/min or more
