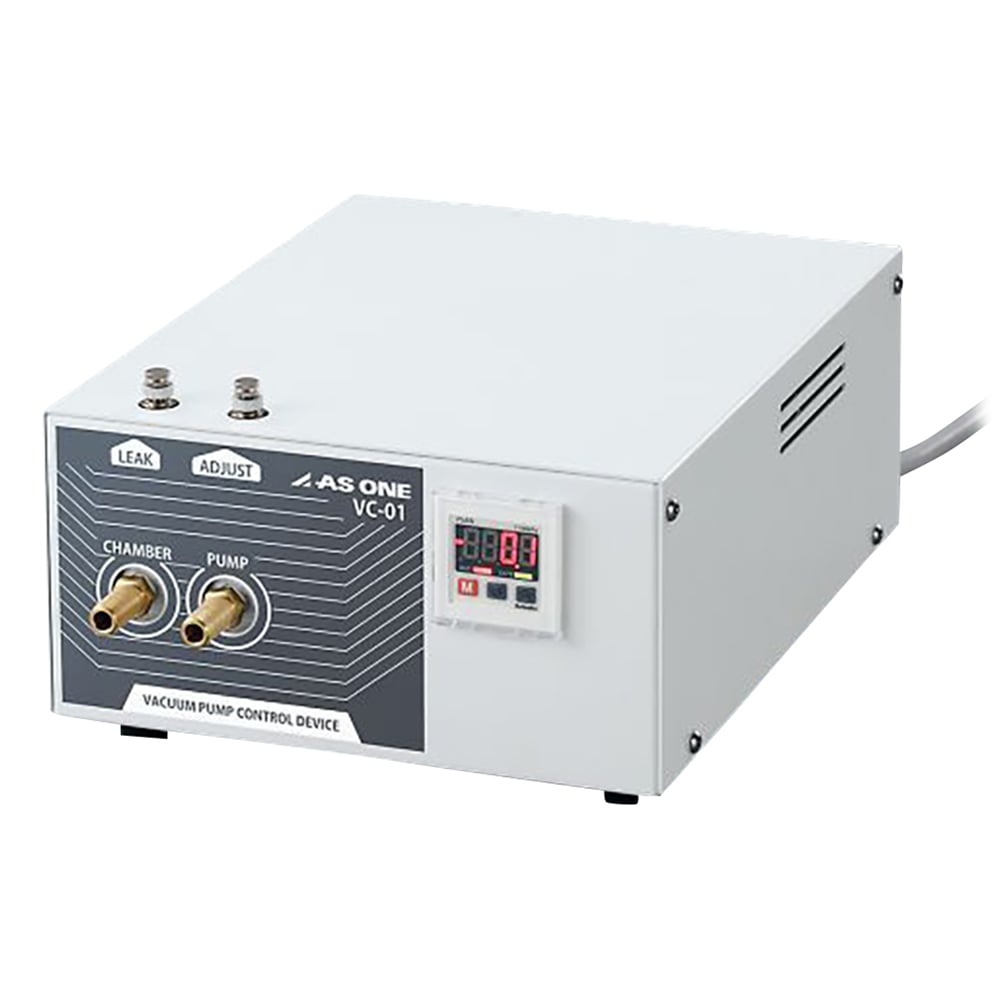

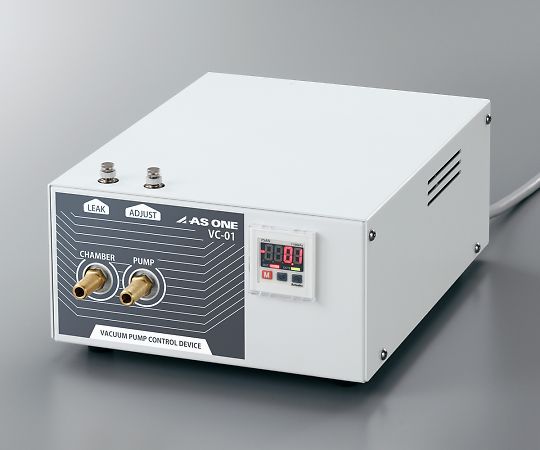

Vacuum controller VC-01 1 piece

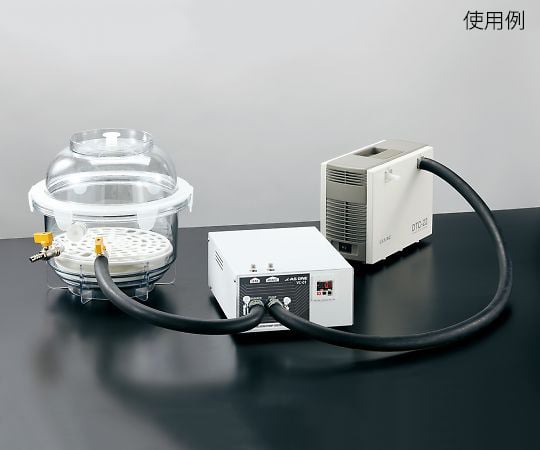

By connecting it in-line between the sealed container (chamber) and the vacuum pump, the pressure in the container is controlled to a constant value. When using pumps suitable for continuous operation such as oil rotary pumps, it can be used with two methods (switching): electromagnetic valve control, and when using dry pumps where there is no risk of oil back, power control. In the case of power control, the pump power is turned off once the set value is reached, which also saves energy. Convenient for long-term pressure control. Pressure setting range (kPa): -101.3 to 0.0 (atmospheric pressure) Minimum display unit: 0.1kPa Control method: Solenoid valve or power ON/OFF control Power supply: AC100V 50/60Hz 6A Connection capacity: Resistive load AC100VMAX6A Connection diameter: φ10.5mm Size: 210×310×130mm Weight: Approx. 4kg *Cannot be used with corrosive or flammable gases.
