One-piece molding provides high strength and airtightness.
The door uses a seamless silicone gasket, making it airtight and eliminating the need for grease.
Can be used in two layers.
Blocks ultraviolet rays below 400 nm. Materials: Main body and shelf: PC (polycarbonate), silica gel plate: PP (polypropylene), packing: silicone rubber
Allowable vacuum level: 1 Torr (approx. 133 Pa)
Load capacity (main body): 100kg
Load capacity (shelf): 5kg

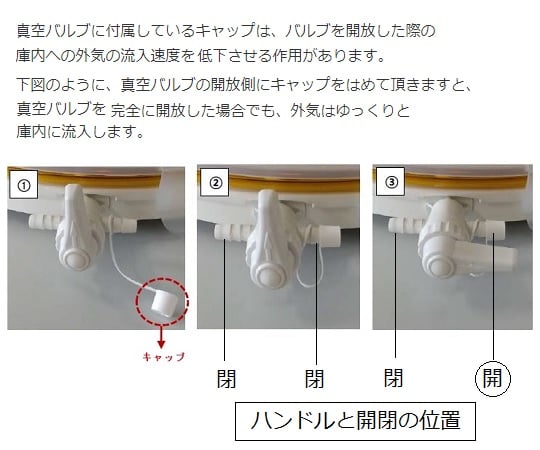

Vacuum valve diameter: φ9mm
Shelf mounting interval: 60mm
Model number: VDC-31U
UV cut type
External dimensions (mm): 418 x 398 x 381
Internal dimensions (mm): 280 x 310 x 293
- Weight(kg):10.8
Accessories: 1 silica gel dish, 4 plugs, 1 vacuum valve, 1 vacuum gauge, 3 shelves
