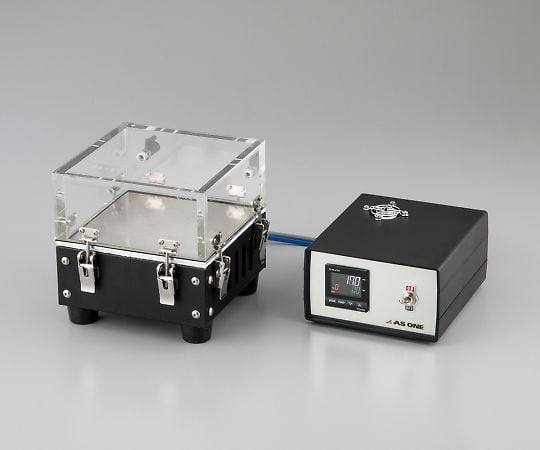

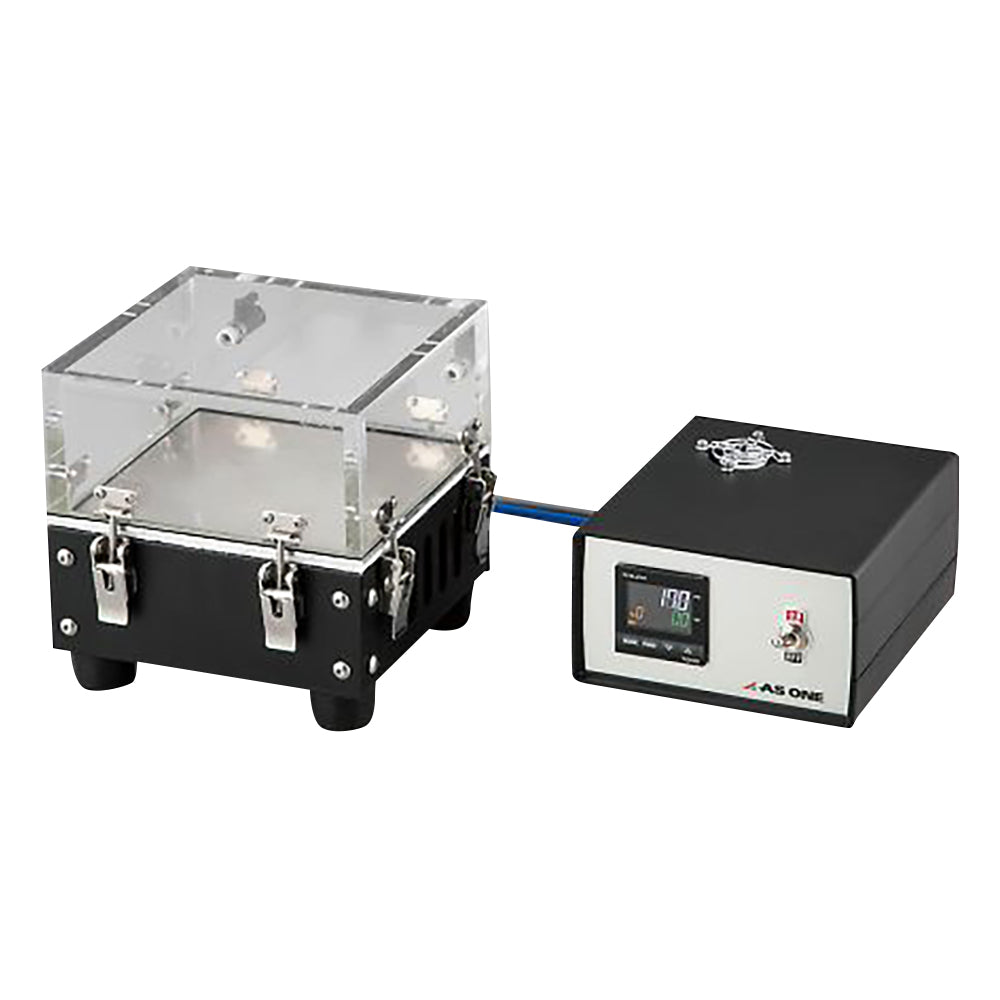

Vacuum cooling plate PRD-1 1 piece

This vacuum-compatible cooling/heating plate uses a Peltier element and can be used for cooling/heating experiments under reduced pressure and for vacuum drying. By creating a vacuum inside the transparent acrylic cover over the plate, experiments can be performed while checking what the inside looks like when the pressure is reduced. All four pieces have snap locks, allowing gas replacement after decompression. Low-temperature vacuum dryer for easy observation! Tabletop size (mm): 150 x 150 Temperature range (℃): 0 to 60 Material: Body: Steel, Cover: Acrylic External dimensions: Main unit: 170 x 170 x 170 mm, Control box: 150 x 195 x 95 mm Allowable vacuum level: -0.09MPa Outer diameter: Φ6 tube one-touch valve x 2 Power supply: AC100V 50/60Hz Weight: Main unit/2.5kg, Control box/2.5kg Power consumption: Approx. 100W
