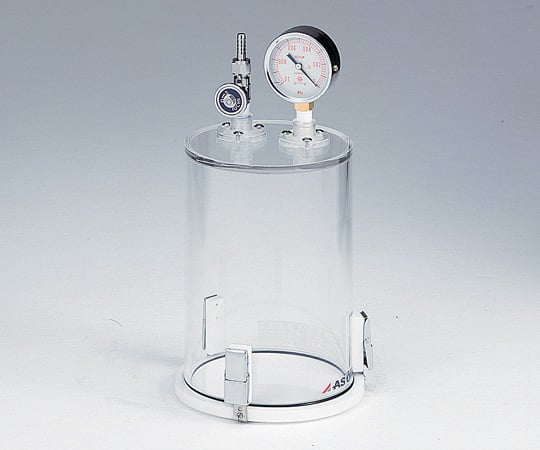

Vacuum plate φ168×330mm VR type 1 piece
Vacuum plate φ168×330mm VR type 1 piece
Regular price
¥37,730
Regular price
Sale price
¥37,730
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Comes with a vacuum gauge that lets you see the vacuum level at a glance
Vacuum valve with outer diameter of φ14mm Body material: Body: transparent reinforced PMMA (acrylic) plate thickness 5mm, top and bottom plates: reinforced PMMA (acrylic) plate thickness 10mm, valve and vacuum gauge attachment part: PC (polycarbonate)
Weight: 1.4kg
Allowable vacuum level: approx. 133Pa
Model number: VR type
External dimensions (mm): φ168×330 *including vacuum meter
Inner dimensions (mm): φ140×200
Accessories: Vacuum valve: Outer diameter φ14mm x 1, Vacuum gauge x 1
Recommended vacuum pumps: (1-4148-11) Dry vacuum pump DTC-22, (1-671-06) Dry vacuum pump DA-20D
