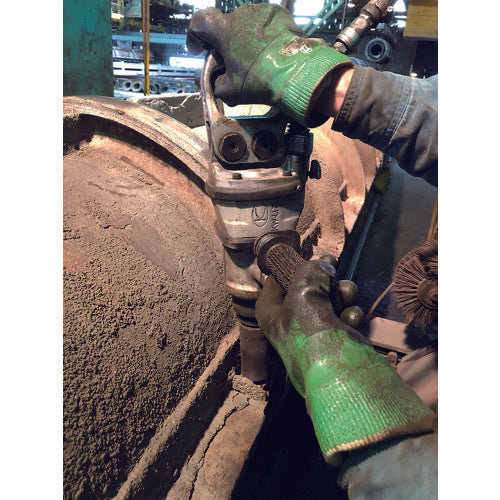

Catalog number: KW-L17G Features: ● The two-hammer clutch improves work efficiency. ● The oil bath type clutch provides excellent durability. ● The dead handle has an anti-vibration effect. Applications: ● For removing and installing bolts on concrete molds. ● For removing and installing molded formwork such as concrete piles, hume pipes, and poles. ● For assembly work on bridges, ships, construction machinery, etc. Specifications: ● Capacity bolt diameter (mm): 19 ● Socket drive size (mm): 19.0 ● Maximum tightening torque (N・m): - ● No-load speed (min［［の−１力］］): 6500 ● Air consumption (［［Ｍ３］］/min): 0.60 ● Hose attachment port: Rc3/8 ● Exhaust: Side ● Total length (mm): 312 ● Hammer type: Two-dog oil bath type ● Air pressure used (MPa): 0.6 ● Air pressure used: 0.6MPa Caution: ● The tightening torque is an approximate value. The torque value varies depending on the conditions.
