Once the specified torque value is reached, the clutch will automatically disengage and the screw will spin freely, so there is no need to worry about over-tightening.
The set torque value can be locked to prevent deviations in the torque value during operation. (Used on CN60 to CN500LTDK)

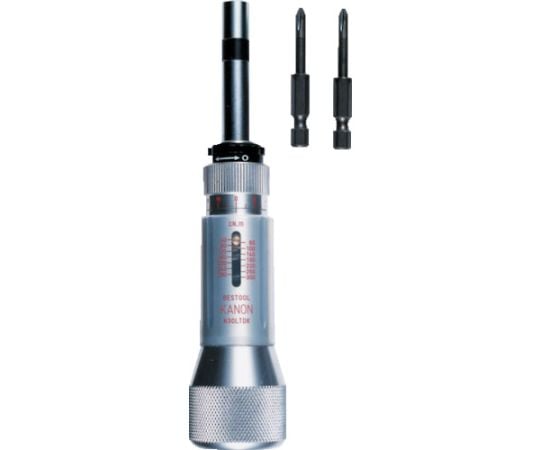

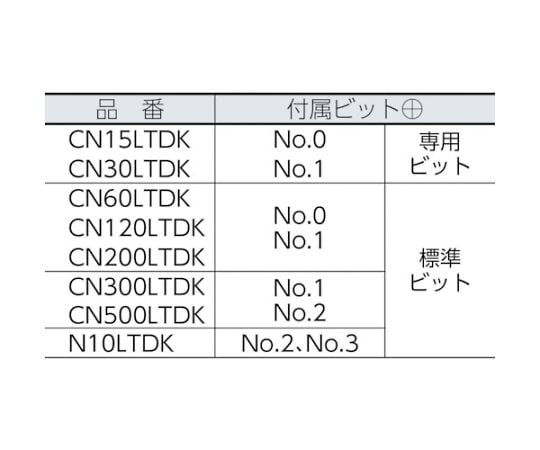

The tool is equipped with two (+) bits.

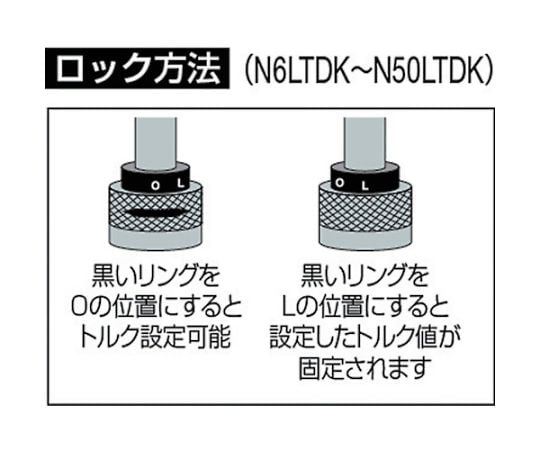

The locking mechanism maintains the set torque value and prevents the torque value from shifting during operation.
For assembling automobile parts and home appliances. Total length (mm): 157
Torque adjustment range (cN・m): 20～120
Minimum scale (cN・m): 1
Grip diameter (mm): 30
Torque accuracy(%): ±3%
Load direction: Right
Torque accuracy: ±3%
Material/Finish:
Note:
Country of Origin: Japan
Country of Origin: Japan
Code number: 126-4851
