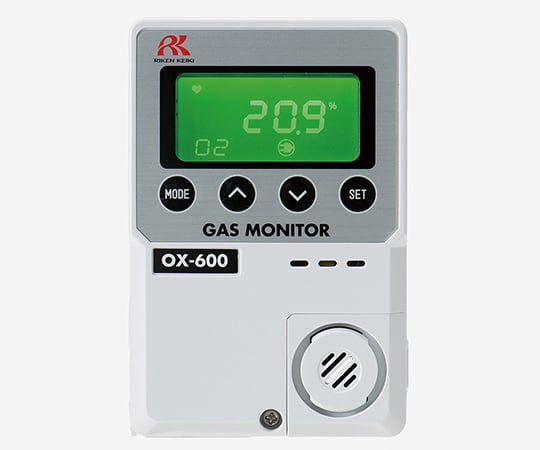

Simple fixed oxygen concentration meter OX-600 (0-25vol%) Integrated type AC100V specification OX-600-00・AC 1 piece

Prevents oxygen deficiency accidents in clean rooms and laboratories!! Large and easy to read! 3-color LCD display Equipped with pressure compensation function, the readings are not affected by atmospheric pressure Smaller and lighter than previous models, larger display screen size, and improved operability with the addition of up and down buttons Compliant with JIST82012010 (oxygen meter for measuring oxygen deficiency) AC power cable 3.2m included as standard. Gas to be detected: Oxygen Detection principle: Diaphragm galvanic cell type Concentration display: LCD digital display (3 digits, 7 segments/green, orange, red 3-color backlight) Detection range (vol%): 0-25 Display resolution (vol%): 0.1 Detection method: Diffusion type Alarm setting value: 1st 19 vol% (L) / 2nd 18 vol% (LL) [Standard setting value] Indication accuracy (under the same conditions): Within ±0.7vol% Response time (under the same conditions): 90% response within 30 seconds Alarm delay time (under the same conditions): Within 5 seconds after detecting 10 to 11 vol% gas in the oxygen deficiency alarm (18 vol%L alarm) Accuracy of alarm setting value: The difference between the alarm setting value and the concentration reading when the alarm is issued is 0 Gas alarm type: 2-stage alarm (L-LL) Gas alarm display: 1st: Concentration display and backlight (orange) and buzzer / 2nd: Concentration display and backlight (red) and buzzer Gas alarm operation: Self-holding Gas alarm contact: Non-voltage contact 1a each, normally de-energized (energized when alarm occurs) Fault alarm/self-diagnosis: System abnormality/sensor connection abnormality Fault alarm display: Contents display, backlight flashing (red), buzzer Fault alarm operation: Automatic recovery Contact capacity: AC125V/1A Transmission specifications: DC 4 to 20 mA (non-insulated, load resistance 300 Ω or less) Power supply: AC100V±10%・50/60Hz Power consumption: AC specification: Maximum 5VA Operating temperature range: -10 to 40°C (no sudden changes) Operating humidity range: 90% RH or less (no condensation) Operating pressure range: atmospheric pressure (80kPa to 105kPa) Structure: Wall-mounted type with integrated sensor External dimensions (mm): Approx. 80 (W) x 120 (H) x 35.5 (D) Mass (g): Approx. 200
