It can measure the dispersion degree of solid particles such as paints, inks, chemicals, and pigments.

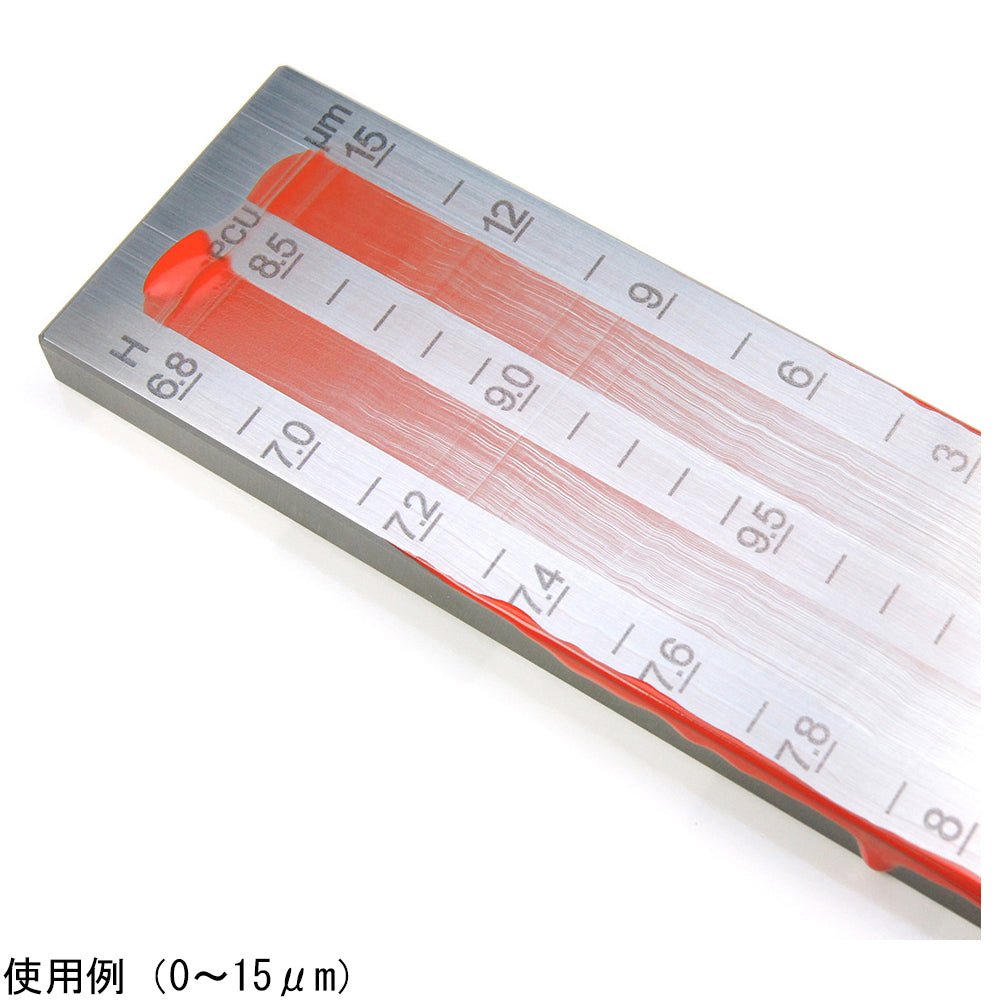

The sample is dropped into the double groove, scraped off with a scraper, and read on the scale on the surface. Measurement range (μm): 0 to 15
Scale interval (μm): 1.5
Material: Stainless steel (SUS420j2 (ASAB Stavax ESR))
Size: Main unit: 175 x 60 x 12 mm, Scraper: 75 x 38 x 8 mm
Groove width: 12mm x 2
Standards: Compliant with: ASTM D 1210, ASTM D 1316, ISO 1524, DIN EN 21524, BS 3900-C6, Compliant with: JIS K5600-2-5

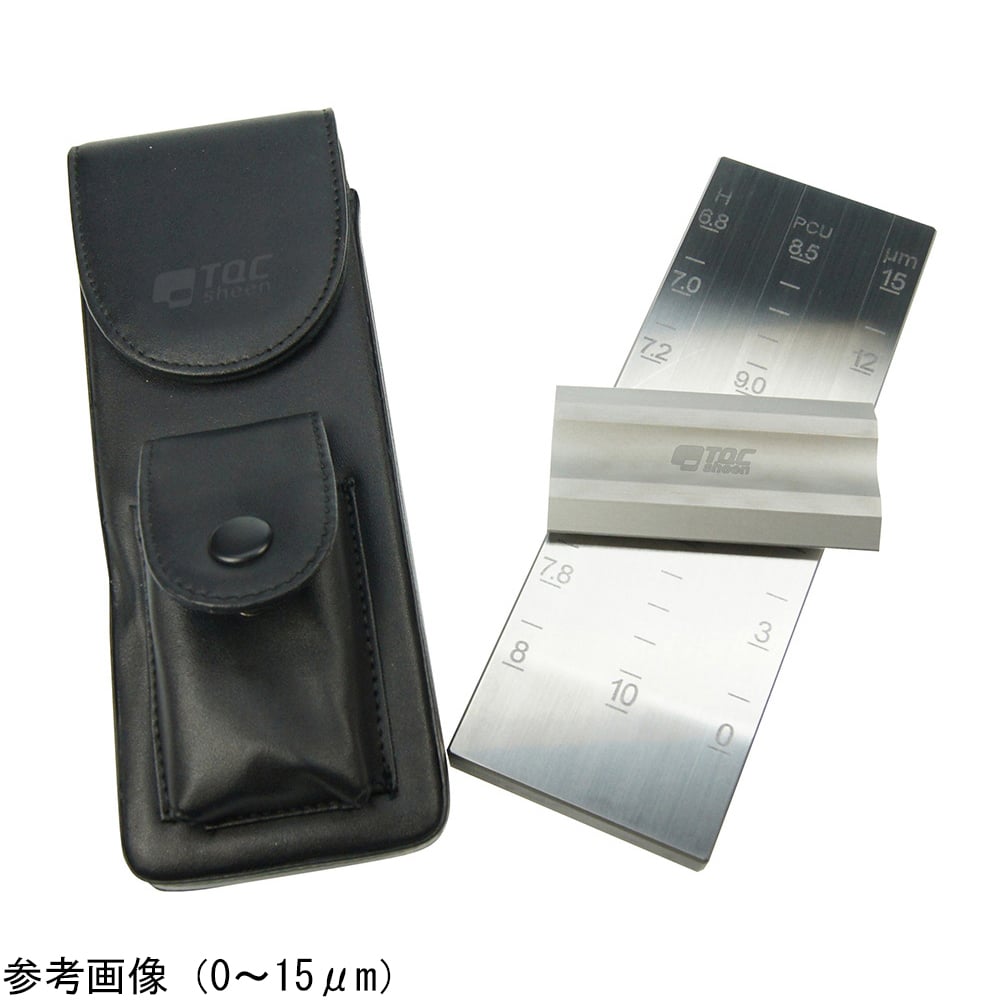

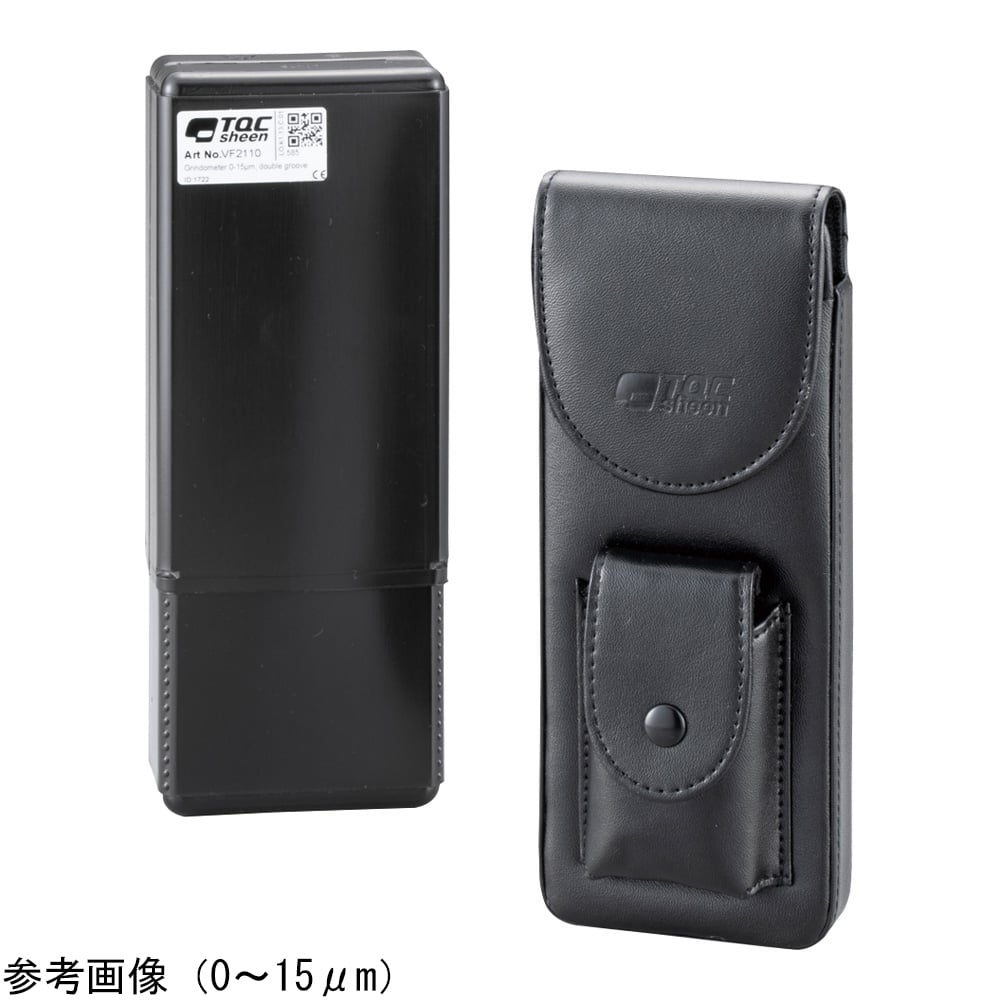

Accessories: scraper, case
