The soft gel prevents damage to precision parts from vibrations during transportation.
The loading surface uses a self-adhesive gel and does not use any adhesive, so there is no transfer of glue to the parts.
The surface shape is flat and mirror-like.
No silicone is used in the material.
Both cases and trays can be held, transported and stored while stacked.
The 2-inch case is available in two different heights.
You can choose from two colors: black and transparent.
Cloudy mesh type has an uneven surface of the adhesive gel, making it easy to pick up even without a vacuum device. Gel shape: Flat FS9

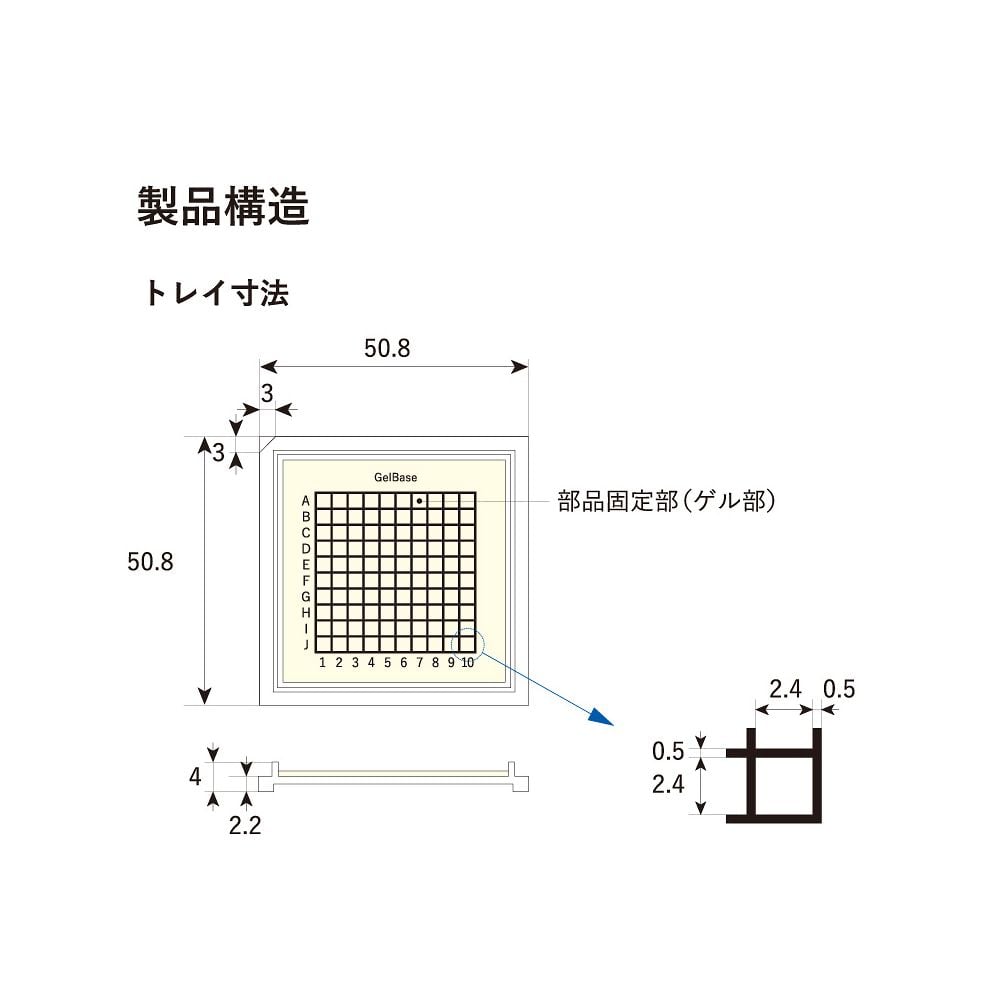

Size (mm): Case/54×54×11, Tray/50.8×50.8×4, Gel/42×42
Color: Case/tray/black, gel/amber
Clearance (mm): 2.0
Surface resistance (Ω): Case/10^11, Tray/10^11, Gel/10^9
Adhesive strength (N/25mm): 0.007 (reference value)
Material: Gel part/Polyurethane
Individually wrapped
