The soft gel prevents damage to precision parts from vibrations during transportation.
The loading surface uses a self-adhesive gel and does not use any adhesive, so there is no transfer of glue to the parts.
The surface has a matte finish, like frosted glass.
No silicone is used in the material.
The cloudy mesh type has an uneven surface on the adhesive gel, making it easy to pick up even without a vacuum device.
The cases can be held, transported and stored while stacked.
Available in two colors: black and transparent. Gel shape: Cloudy C5

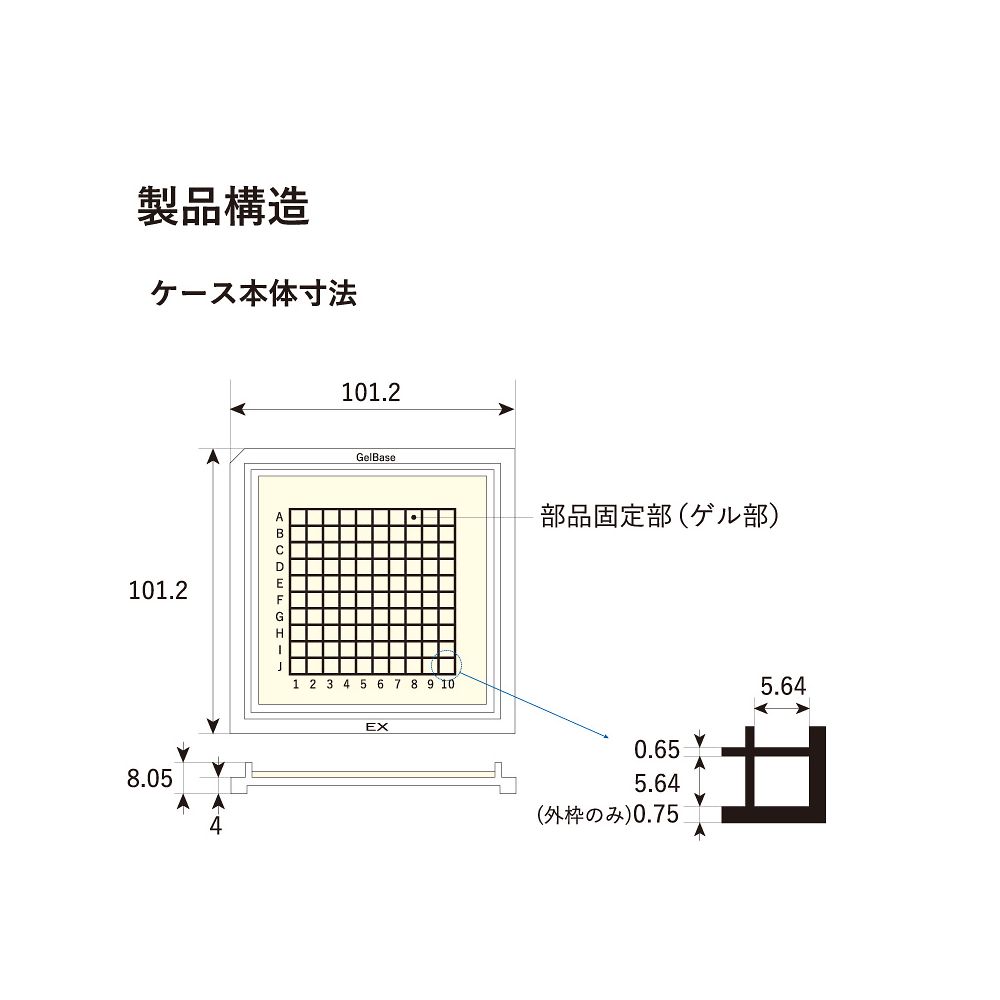

Size (mm): Case cover/101.3×101.3×8, Case body/101.2×101.2×8.05, Gel/85×85
Color: Case/tray/black, gel/amber
Clearance (mm): 4.5
Surface resistance (Ω): Case/10^11, Tray/10^11, Gel/10^8
Adhesive strength (N/25mm): 0.14 (reference value)
Material: Gel part/Polyurethane
Individually wrapped
