The soft gel prevents damage to precision parts from vibrations during transportation.
The loading surface uses a self-adhesive gel and does not use any adhesive, so there is no transfer of glue to the parts.
The surface shape is flat and mirror-like.
No silicone is used in the material.
The cases can be held, transported and stored while stacked.
You can choose from two colors: black and transparent.
Cloudy mesh type has an uneven surface of adhesive gel, so it can be picked up easily without a vacuum device. Gel shape: Flat FS9

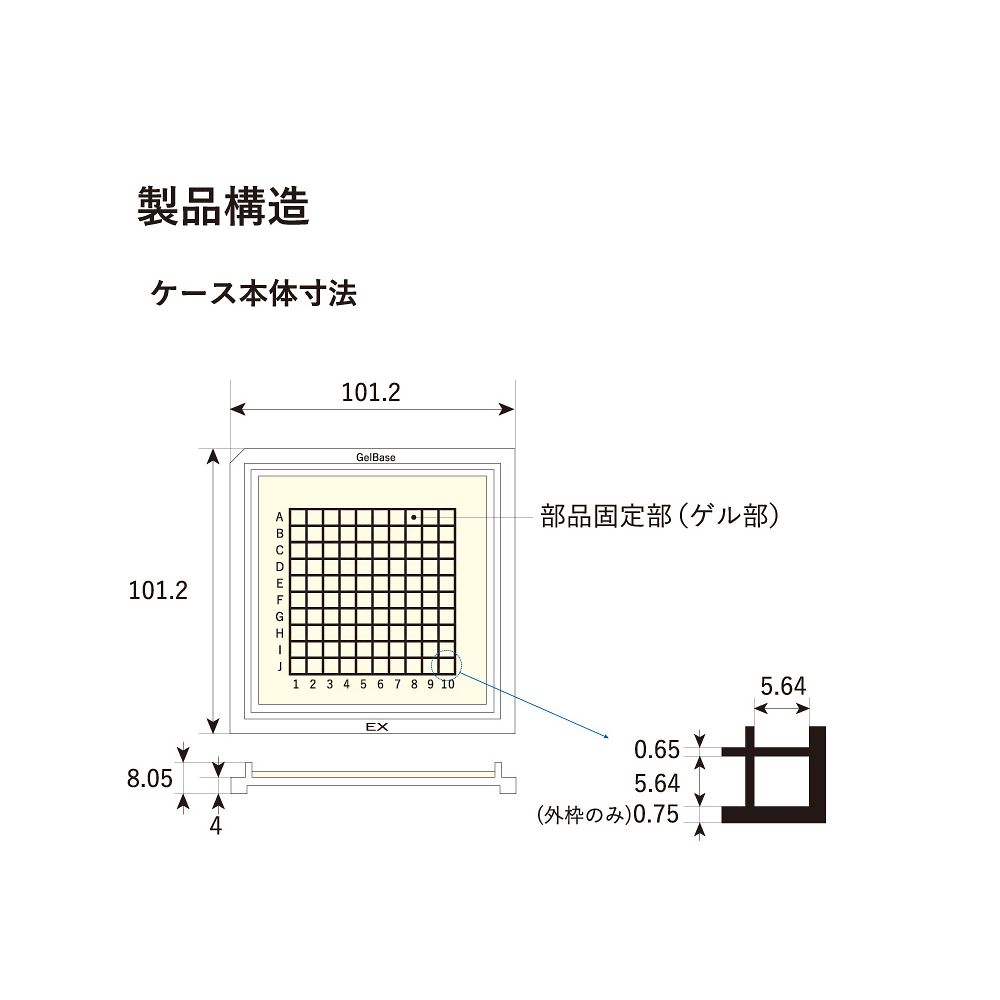

Size (mm): Case cover/101.3×101.3×8, Case body/101.2×101.2×8.05, Gel/85×85
Color: Case/tray/black, gel/amber
Clearance (mm): 4.5
Surface resistance (Ω): Case/10^11, Tray/10^11, Gel/10^9
Adhesive strength (N/25mm): 0.007 (reference value)
Material: Gel part/Polyurethane
Individually wrapped
