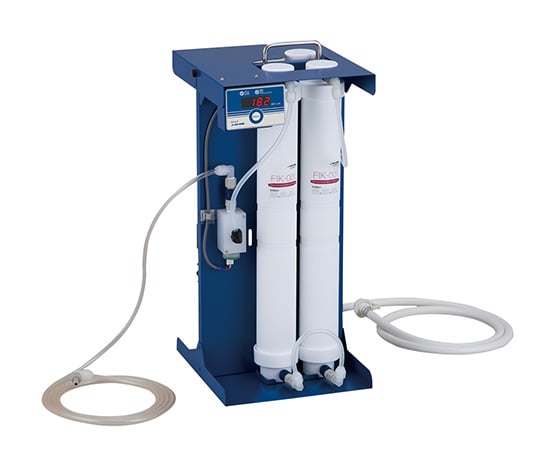

Pure water production device main unit set WA-01P 1 set
Pure water production device main unit set WA-01P 1 set
Regular price
¥148,500
Regular price
Sale price
¥148,500
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

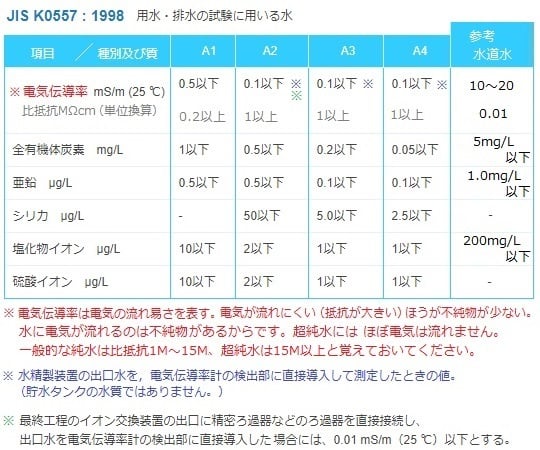

Simply supply tap water and you can obtain A4 level (JIS K 0557) pure water.
It has a compact, lightweight design and does not require a power source (water quality meter: battery-operated), so it can be installed anywhere, and it has a handle so it can be carried around easily.
It can supply purified water to other equipment, external water storage tanks, cleaning equipment, etc., and can also be used as a pretreatment device for ultrapure water production equipment.
Cartridge replacement is easy with a one-touch connection, making maintenance easy.

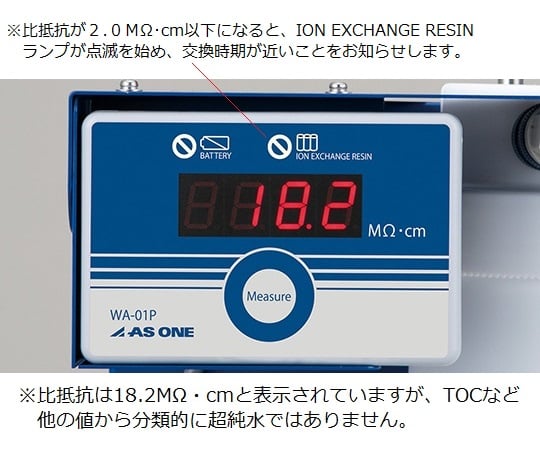

A light on the water quality meter will notify you when it is time to replace the ion exchange resin cartridge.
Compact and lightweight design, no power supply required. Low-cost pure water production device that can produce A4-level pure water. Purification method: Ion exchange
Purified water: Ion-exchanged water
Water collection speed: approx. 1L/min
Ambient temperature: 5℃ to 35℃

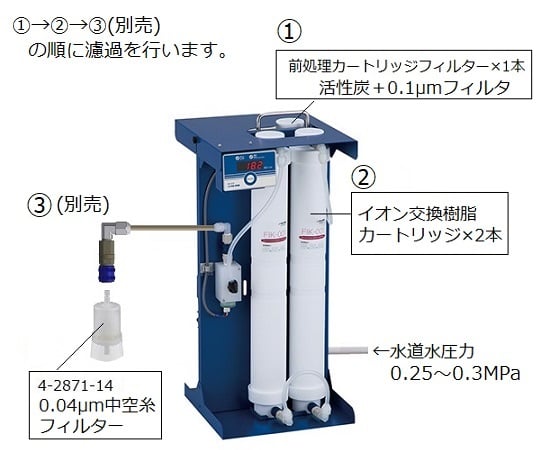

Raw water filter: Pretreatment cartridge filter / 1 piece
Ion exchange resin cartridge: One-touch connection cartridge (wet bed type) / 2 pieces
Water quality meter: Battery-powered digital display (resistivity: 25℃ automatic temperature compensation)
Raw water pressure range: 100 to 490 kPa
Weight: Approx. 5kg
Cartridge replacement guideline
Pretreatment cartridge (1 cartridge) / 1 cartridge for every 3 ion exchange cartridges
Ion exchange resin cartridge (2 cartridges) / Approx. 840L (when using Osaka Prefecture tap water)

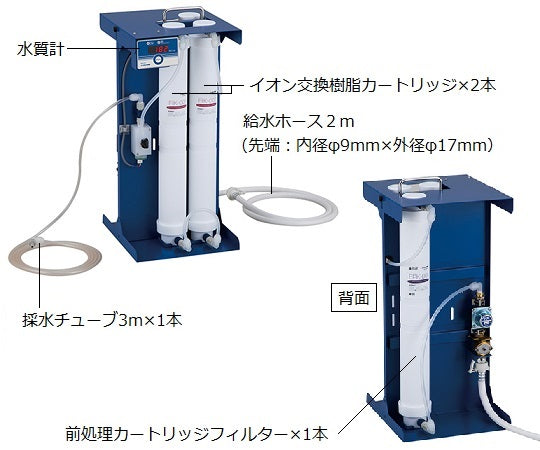

Main unit set accessories
Pretreatment cartridge filter x 1
Ion exchange resin cartridge x 2
Outlet (with instructions for replacing the outlet gasket for chemical faucets) x 1

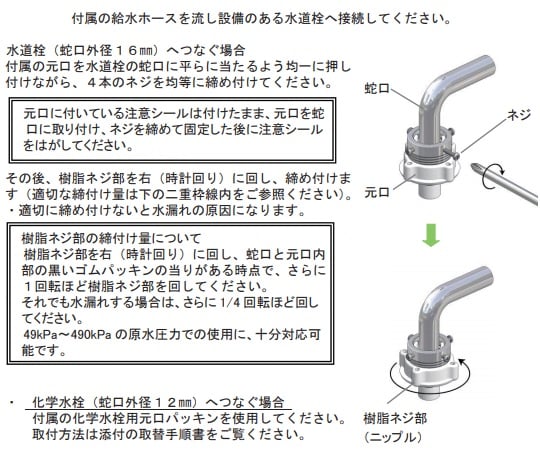

Water supply hose (with connection unit, inner diameter φ9mm x outer diameter φ17mm, 2m)
Water collection tube 3m x 1
2 x AA batteries
