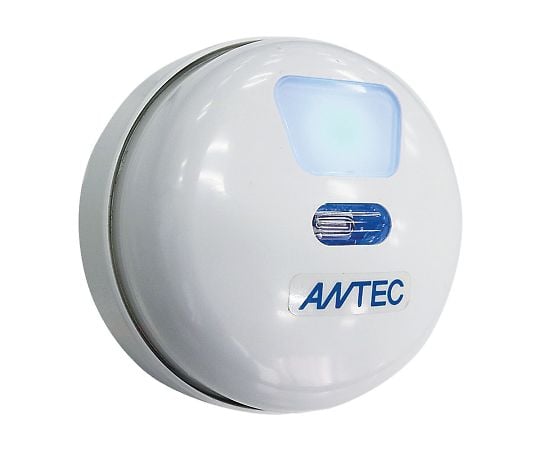

Ultraviolet-sensitive flame sensor (for both indoor and outdoor use) SKH047M 1 piece

It instantly detects even the smallest flames. A flame of about 2cm in size can be detected in as little as 0.5 seconds from a distance of about 5m. The technology to separate the ultraviolet rays from sunlight allows it to be used outdoors without compromising performance. Size (mm): Φ68×25 Case material: ABS resin UV detection wavelength: 185-260nm Detection angle range: Up/down/120°, left/right/120° Detection distance: Approx. 5m (with 2cm flame) Detection timer: 0.5 seconds, 1 to 31 seconds, can be set in 1 second increments Alarm output: 1A relay contact (AC125V, 0.5A, DC24V 1A) or open collector (DC5V IC200mA) Power supply: DC9-24V Wiring: 4 wires (2 power wires, 2 output wires) Operating temperature range: -10 to +60°C Weight: 75g Rated power consumption: 200mW or less (standby) Waterproof and dustproof: IP64 equivalent
